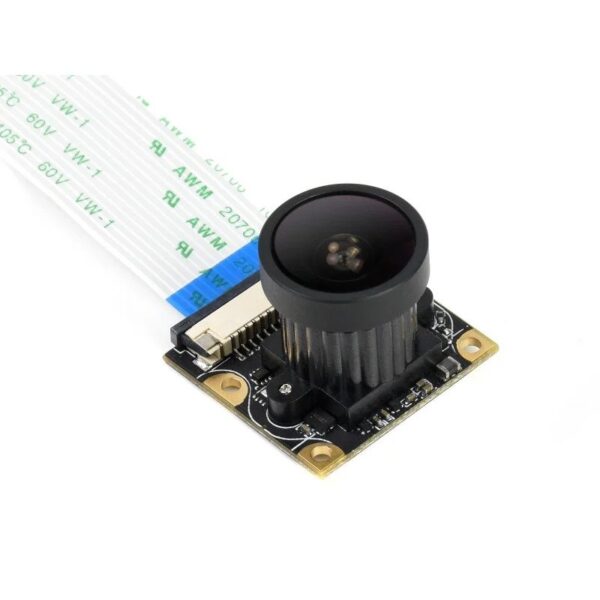

IMX477-160 12.3MP Camera, 160° FOV, Applicable For Jetson Nano / Compute Module suitable for AI applications like: facial recognition, road mark recognition, license plate number recognition, and so on. MIPI-CSI Camera, based on Sony IMX477 sensor, 1230 M pixels. Supports Raspberry Pi Compute Module series and Jetson Nano developer Kit.
The High Quality Camera (HQ Camera for short) can capture higher-resolution images than the standard Camera Module. Unlike the latter, it doesn’t have a lens already attached. Instead, it can be used with any standard C- or CS-mount lens; 6 mm and 16 mm lenses are available to purchase with the camera to help you get started.
Application:
- Facial recognition
- Road mark recognition
- License plate number recognition
Specification
| Operating voltage | 3.3V |
| Model | IMX477-160 |
| Resolution | 4056 × 3040 |
| CMOS diagonal length | 7.9 mm |
| Pixel Size | 1.55µm (H) × 1.55µm (V) |
| Camera Aperture | (F) 2.2 |
| Focal Length | (BFL) 2.75 |
| Distortion | <16% |
| Shipment Weight | 0.018 kg |
Feature:
- High Quality Camera
- Light weight
- suitable for AI applications
- Based on Sony IMX477 sensor
- Best for IoT projects
- Low power consumption
Package Include:
- 1 X Waveshare IMX477-160 12.3MP Camera, 160° FOV, Applicable For Jetson Nano / Compute Module
