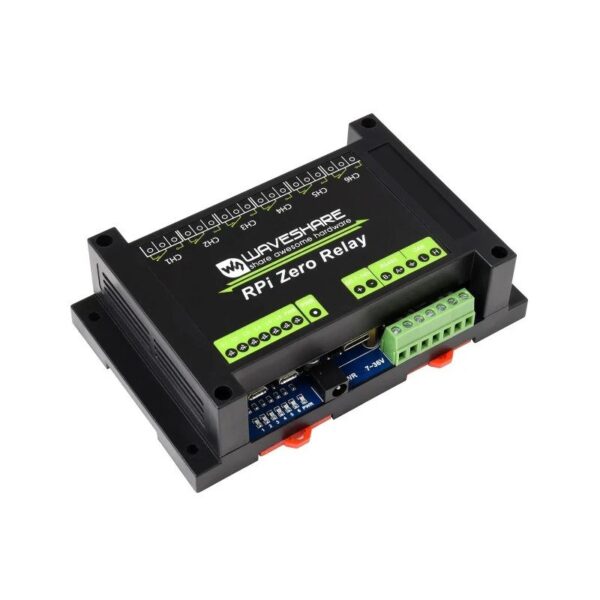

This is a 6-ch Relay Module for Raspberry Pi Zero with RS485/CAN. It features embedded protection circuits such as power isolation, Photocoupler Isolation, and TVS diode, etc.
Specifications
| Operating Voltage(V) | 1-Jul |
| No. of Channels | 12:00 AM |
| Communication Interface | RS485, CAN |
| Contact Form | 1NO 1NC |
| Shipment Weight | 0.411 kg |
Features:
RS485 half-duplex communication: using SP3485, UART control, auto RX/TX switch
- CAN half-duplex communication: using MCP2515 + SN65HVD230 solution, SPI control
- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
- Onboard photocoupler isolation, prevent interference from external high-voltage circuit connected to the relay
- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightning proof & anti-electrostatic
- Onboard resettable fuses and protection diodes, ensuring current/voltage stable output, preventing over current/voltage, better shock-resistance performance
- High-quality relay, contact rating: ≤10A 250V AC or ≤10A 30V DC
- ABS protection enclosure with rail-mount support, easy to install, safe to use
Package Includes:
- 1 x ABS protection enclosure (top and bottom)
- 1 x RPi Zero Relay
- 1 x Screwdriver
- 1 x 12V 1A power adapter (OPTIONS)
- 1 x Screws pack
