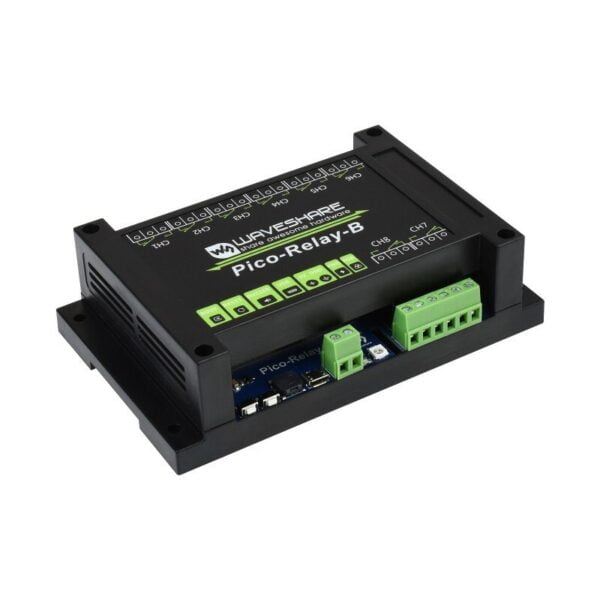

This is an industrial 8-channel relay module for Raspberry pi pico by Waveshare. It features embedded protection circuits such as Power Supply Isolation & Photocoupler Isolation. It also comes with an ABS enclosure.
Specifications
| Recommended Power Supply | 5V |
| Communication Interface | Micro USB |
| Communication Protocol | USB |
| Channel | 8 |
| Contact Type | 1 NO 1 NC |
| Length (mm) | 140 |
| Width (mm) | 90 |
| Height (mm) | 40 |
| Weight (gm) | 242 |
Features:
- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
- Onboard photocoupler isolation, prevent interference from external high-voltage circuit connected to the relay
- High-quality relay, contact rating: 10A 250V AC or ≤10A 30V DC
- ABS protection enclosure with rail-mount support, easy to install, safe to use
- Breakout USB port and BOOT pin, make it easy to debug without disassembling the enclosure
- PWR indicator, RGB LED, and passive buzzer outside the enclosure
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Package Includes:
- 1 x Waveshare Industrial 8-Channel Relay Module for Raspberry Pi Pico, Multi-Protection
