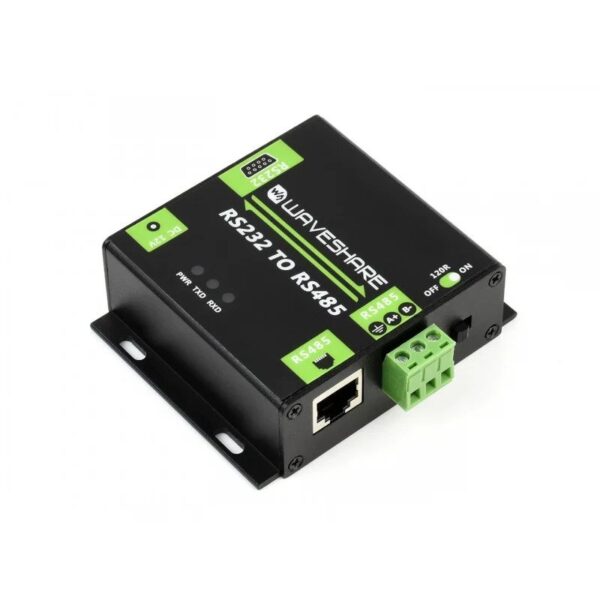

This is an Industrial Grade Isolated RS232 to RS485 Converter from Waveshare asynchronous bidirectional converter, which features electromagnet isolation. The internal TVS bidirectional transient suppression diode and detonator to protect the device from unstable working.
It has onboard unibody power supply isolation which provides stable isolated voltage and needs no extra power supply for the isolated terminal. The unibody ADI magnetical isolation allows signal isolation, high reliability, strong anti-interference, low power consumption. The onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit with lightning-proof & anti-electrostatic.
Specifications
| Brand | Waveshare |
| Data Rate | 300~115200bps |
| Device Port | RS232/RS485 standard complaint |
| RS485 | Connector: screw terminal + RJ45 connector |
| Direction control: hardware automatic control | |
| Protection: 600W lightning-proof and surge-suppress, 15KV ESD | |
| Transmission distance: ~1200m | |
| Terminal resistor: 120R, enabled/disabled via switch | |
| Transmission mode: point-to-multi points | |
| RS232 | Connector: DR9 Female |
| Transmission distance: ~15m | |
| Transmission mode: point-to-point | |
| Operating Environment | Temperature: -15℃ ~ 70℃ |
| Humidity: 5%RH ~ 95%RH | |
| Length (mm) | 86.5 |
| Width (mm) | 71.6 |
| Height (mm) | 27.4 |
| Weight (gm) | 180 |
| Shipment Weight | 0.365 kg |
Features:
- Compatible with RS232/RS485 standard, converting the RS232 signal into balanced differential RS485 signal.
- Stable transmission at the rate of 300~115200bps.
- About 1200m transmission distance of RS485, about 15m transmission distance of RS232
- Integrates optional RS485 output terminal 120R resistor, enabled/disabled via a switch.
- DC-005 power jack allows 6V~36V DC wide-range input, which suits different application situations.
- 3x LED indicators, easy to check the operating status: power, transmitting, and receiving.
- Aluminium alloy enclosure with sandblasting and anodic oxidation, solid and durable.
Package Includes:
- 1 x Industrial Grade Isolated RS232 to RS485 Converter
- 1 x 1.5m male-to-female serial cable
