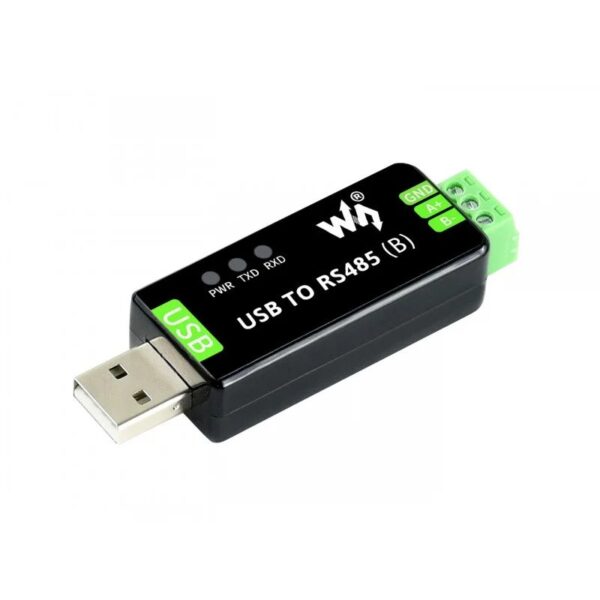

Industrial USB TO RS485 Bidirectional Converter, Onboard Original CH343G, Multi-Protection Circuits And SP485EEN Chips, Providing Better Stability And Compatibility, Built-In Lightningproof Tube, Resettable Fuse, ESD And TVS Protection Circuits, Etc.The USB Signal Can Be Converted Into A Balanced Differential RS485 Signal And The Transmission Rate Is Stable. The Reliable Speed Is 300bps ~ 3Mbps, The Transmission Distance Is About 1.2km For RS485 And About 5 Meters For USB.CH343G is a USB bus adapter chip, which can convert USB to a high-speed asynchronous serial port, supports automatic identification and dynamic self-adaptation of communication baud rate of 115200bps and below, and provides commonly-used MODEM contact signals to expand asynchronous serial ports for computers. It can upgrade a common serial device or MCU directly to a USB bus.
Specifications:
- Host Port: USB
- Device Port: RS485
- Baud Rate: 300bps ~ 3Mbps
- Operating voltage: 5V
- Connector: USB-A
- Transmission distance: 5m
- Protection: 200mA self-recovery fuse, ESD protection
- Pins: A+, B-, GND
- Humidity 5%RH ~ 95%RH
- Transmission mode: Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
- TXD: Red TX indicator, light up when the USB port sends data
- RXD: Red RX indicator, light up when the device ports send data back
Features:
- Support USB to RS485 bidirectional conversion
- Fast communication, stable and reliable, better compatibility
- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightning proof & anti-electrostatic
- Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
- 3 LEDs for indicating the power and transceiver status
Package Includes:
- 1 x USB TO RS485 (B)
- 1 x USB-A male to female cable
- 1 x Screwdriver
