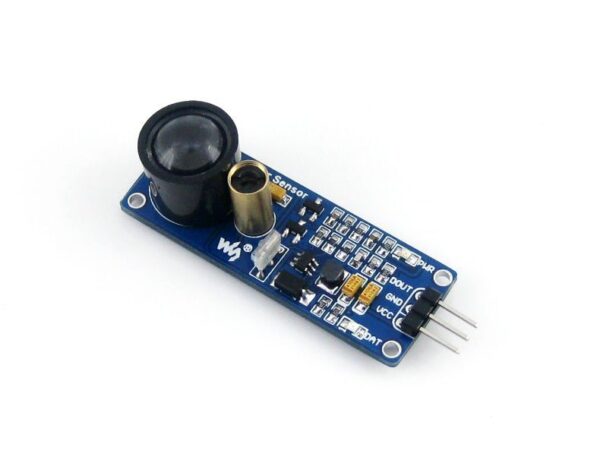

Diffuse Reflection Laser Sensor Module Laser Ranging Module Obstacle Detection. Signal output indicator, Features boost circuit.Obstacle detection,Pipeline counter,Smart robot,Obstacle-avoiding car.
A laser sensor contains a transmitter and a receiver. In the transmitter, there is an oscillating tube can generate a shockwave in a frequency of 180KHz. After amplified by a transistor, the shockwave is applied to the laser tube for exciting. In the receiver, there is a receiving tube, matching to the oscillating tube, can receive the reflected light. Since the laser sensor adopts modulation processing technology, the receiving tube can only receive the reflected light in a same frequency, efficiently preventing from the visible light.
Specifications
| Effective distance | 0.8m(typ), 1.5m(max) |
| Voltage (V) | 2.5V ~ 5.0V |
| Application | Obstacle detection |
| Obstacle-avoiding car | |
| Interface | Digital Output |
| GND | |
| VCC | |
| Color | Blue |
| Outline dimension (mm) | 47.7mm * 17.9mm |
| Mounting Hole Diameter (mm) | 2.0mm |
| Shipment Weight | 0.01 kg |
Features:
- Boost circuit
- Signal output indicator
Package Includes:
- 1 x Laser Sensor
- 1 x 3-pin custom connector jumper wire
