This is an RS232/485/422 device data acquisitor / IoT gateway designed for an industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc. The module features RS232/485/422 and an Ethernet port with PoE function, uses a DC port (outer diameter: 5.5mm, inner diameter: 21mm) and screw terminals for power input. The case with rail-mount support, is small in size, easy to install, and cost-effective. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring…

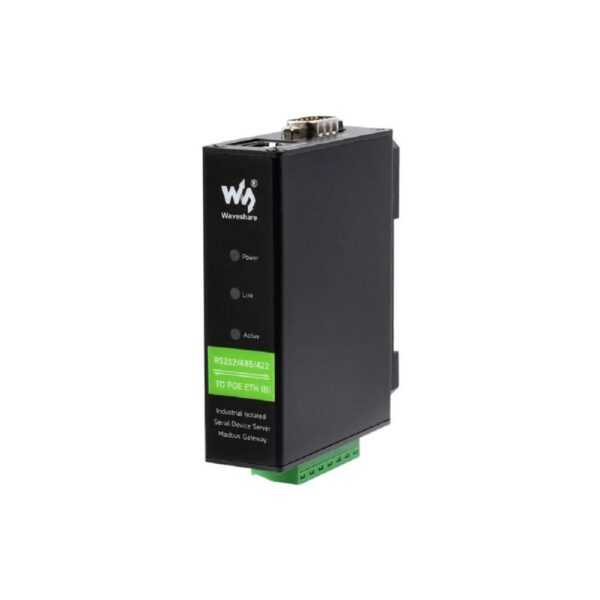

Rail-Mount Serial Server, RS232/485/422 To RJ45 Ethernet Module, TCP/IP To Serial, With POE Function.
Specifications:
- Model: RS232/485/422 TO POE ETH (B)
- Product type: Serial server, Modbus gateway, MQTT gateway
- Primary function Realize the bidirectional transparent transmission function of RS232/485/422 to Ethernet
- Communication interface: RS232/485/422 × 1, Ethernet port × 1
- Power supply: Screw terminal DC 6~36V or PoE network port
- Isolation protection: Power isolation, signal isolation protection
- Ethernet:
- PoE Ethernet port, support IEEE 802.3af standard
- 10 / 100M self-adaptive RJ45 interface, 2KV surge protection
- Serial port Isolated RS232/485/422
- Baud rate 300 ~ 115200 bps
- Parity bit none, odd parity, even parity, mark, space
- Data bits 5 ~ 9 bits
- Flow Control no flow control
- Protocol ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
- Configuration method PC configuration, WEB browser, device management function library
- Communication method TCP/IP direct communication, virtual serial port mode
- Operating mode TCP server, TCP client (TCP server also coexist), UDP, UDP multicast
- Operating temperature -40℃ ~ 85℃
- Humidity range 5% ~ 95% relative humidity
- Dimensions L × W × H: 88.7 × 64.5 × 24.2 mm
Features:
- Support PoE Ethernet Port Power Supply,
- Suitable For IEEE 802.3af PoE Standard
- Support Screw Terminal And DC Power Port For Power Supply
- DC 6~36V Wide Voltage Range Input
Package Includes:
- 1 x Waveshare Rail-Mount Serial Server RS232/485/422 to RJ45 Ethernet Module
