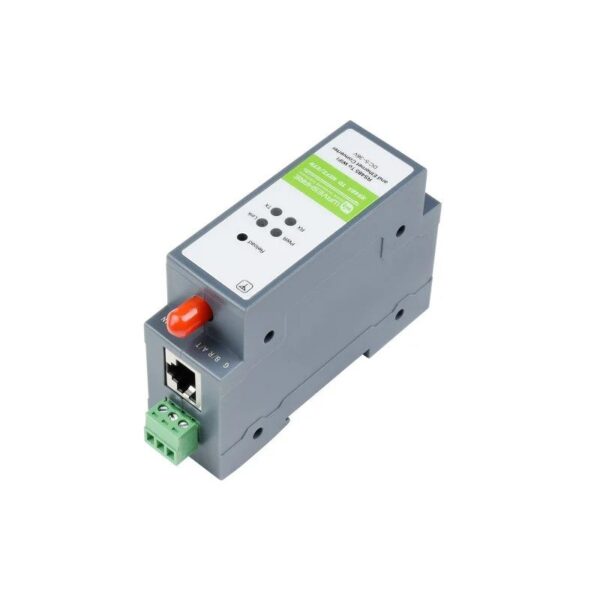

Rail-Mount Serial Server, RS485 To WIFI/Ethernet Module, Modbus MQTT gateway .This is a RS485 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to HTTPD Client, etc. With RS485, WIFI and Ethernet ports, the module can realize functions such as serial to WIFI, serial to Ethernet, Ethernet to WIFI and so on. Using screw terminals for power input, it supports 5~36V wide range power supply. Rail-mount V0 flame-retardant case design, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring…
Specification
| Run voltage | DC5-36V |
| Run temp | 40℃-85℃ |
| Baudrate | 300 ~ 460800 bps |
| Storage temp | 40℃-125℃ |
| Safety | WPA-PSK/WPA2-PSK |
| Wireless standard | 802.11 b/g/n |
| Frequency range | 2.412GHz-2 .484GHz |
| Communication interface | RS485, screw terminal |
| Transmitting power | – 802.11b: +19dBm (11Mbps) |
| – 802.11g: +18dBm (54Mbps) | |
| – 802.11n: +17dBm (HT20, MCS7); +17dBm (HT40, MCS7 | |
| Receiving sensitivity | – 802.11b: -89dBm (11Mbps) |
| – 802.11g: -81dBm (54Mbps) | |
| – 802.11n: -73dBm (HT20, MCS7); -71dBm (HT40, MCS7) | |
| Operating mode | Transparent transmission, serial command, HTTPD Client, Modbus TCP to Modbus RTU |
| Dimensions | L × W × H: 109.66 × 28 × 64.71 mm |
| Weight | 157g |
| Shipment Weight | 0.158 kg |
Features:
- Support 802.11b/g/n wireless standards.
- Support WAVESHARE-link.
- Support route and bridge modes.
- Support RS485 to Wifi/ Ethernet communication.
- Rich indicator LED: Power, link, RXD, TXD.
- Wide voltage DC 5~36V, support terminal power
Package Include:
- 1 X RS485 TO WIFI/ETH
- 1 X Antenna
