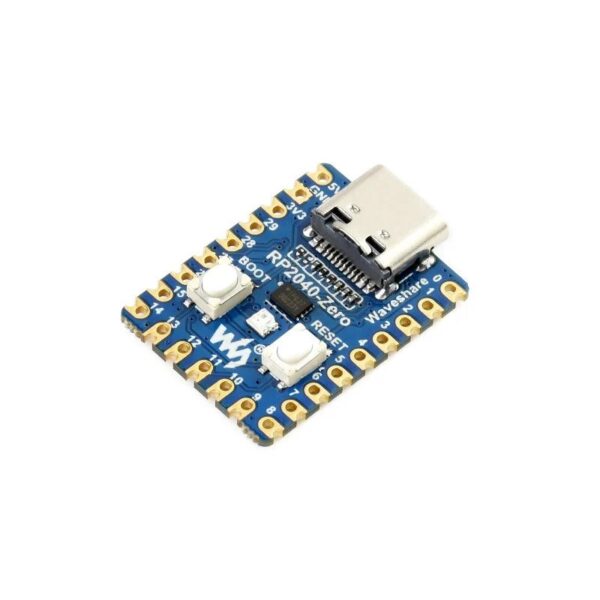

Waveshare RP2040-Zero Without Header

RP2040-Zero, A Low-Cost, High-Performance Pico-Like MCU Board Based On Raspberry Pi Microcontroller RP2040

Specification:

• Processor: Raspberry Pi official RP2040 mini
• Regulator: ME6217 (LDO, 800mA)
• USB: Type-C
• Flash: 2MB

Features:

• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
• 264KB of SRAM, and 2MB of on-board Flash memory
• USB-C connector, keeps it up to date, easier to use
• The castellated module allows soldering direct to carrier boards
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• 29 × multi-function GPIO pins (20× via edge pinout, others via solder points)
• 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 8 × Programmable I/O (PIO) state machines for custom peripheral support

Package Includes:

• 1 x  Waveshare RP2040-Zero Without Header
