                                                                                                                                                    HomeRaspberry PiRaspberry Pi Hats Waveshare SIM7600G-H 4G HAT For Raspberry Pi, LTE Cat-4 4G / 3G / 2G Support

                                                                                                                                                    Waveshare SIM7600G-H 4G HAT For Raspberry Pi, LTE Cat-4 4G / 3G / 2G Support

                                                                                                                                                    ₹6,800.00 (Exclusive GST Tax 18%)

                                                                                                                                                    Available Offers
                                                                                                                                                    • ► Free Shipping By Bluedart Air  : On over value Rs.3000
                                                                                                                                                    • ► Bulk Quantities discount :  send mail on sales@compoindia.com
                                                                                                                                                    • ► Tax invoice  : Get GST invoice and save up to 18% on business purchases

                                                                                                                                                    Note : Customer Don't need to pay any extra charge like custom duty and any other cost. Have to pay only GST with price.

                                                                                                                                                    In stock

                                                                                                                                                    ► Bulk Quantities discount :  send mail on sales@compoindia.com



                                                                                                                                                    Great price on bulk order

                                                                                                                                                    Secure Payment

                                                                                                                                                    Fast & Quick Delivery

                                                                                                                                                    7 days Return Policy

                                                                                                                                                    More on shipping and other trade services
                                                                                                                                                    safety-delivery

                                                                                                                                                    Your Safety is our Priority

                                                                                                                                                    India, we care for you and are here for you
                                                                                                                                                    Know More

                                                                                                                                                    Help us improve your shopping experience

                                                                                                                                                    Write your Feed Back

                                                                                                                                                    review

                                                                                                                                                    Can't find what you are looking for?

                                                                                                                                                    Let Us Know
                                                                                                                                                    Add to wishlist
                                                                                                                                                    SKU: M92741 Category: Raspberry Pi Hats
                                                                                                                                                    Share
                                                                                                                                                    close
                                                                                                                                                    compoindia | Robotics parts store | Development boards | Raspberry Pi | Display
                                                                                                                                                    4.9
                                                                                                                                                    Based on 130 reviews
                                                                                                                                                    powered by Google
                                                                                                                                                    review us on
                                                                                                                                                    Melford Mutara
                                                                                                                                                    11:21 11 Dec 23
                                                                                                                                                    I was very happy about the servicesGood customer care
                                                                                                                                                    tafadzwa chipere
                                                                                                                                                    11:20 11 Dec 23
                                                                                                                                                    Excellent services
                                                                                                                                                    Bhavin Ambaliya
                                                                                                                                                    10:40 11 Dec 23
                                                                                                                                                    2021 01126
                                                                                                                                                    06:13 23 Nov 23
                                                                                                                                                    the owner helped a lot with our project and explained all the components .
                                                                                                                                                    Aadi Jain 20220301003
                                                                                                                                                    05:27 01 Nov 23
                                                                                                                                                    Gaddam Dinesh
                                                                                                                                                    08:23 07 Oct 23
                                                                                                                                                    Product and service well
                                                                                                                                                    Ishwariya Mathivanan
                                                                                                                                                    17:39 06 Oct 23
                                                                                                                                                    The person responded instantly even after office hours ! Excellent service and extremely fast delivery!!!
                                                                                                                                                    RAVAL DIPAK V.
                                                                                                                                                    14:07 02 Jan 23
                                                                                                                                                    Very good staff. Best price affordable and best quality. Almost all parts like Arduino, raspberry and their components are available. Also Delivery is also quick.
                                                                                                                                                    js_loader
                                                                                                                                                    • Description
                                                                                                                                                    • Additional information
                                                                                                                                                    Description

                                                                                                                                                    The SIM7600E-H 4G HAT is a 4G/3G/2G communication and GNSS positioning module, which supports

                                                                                                                                                    LTE CAT4 up to 150Mbps for downlink data transfer. it is pretty low power consumption. You can connect this 4G module with a computer to surf the Internet or attach it onto Raspberry Pi to enable functions like 4G high-speed connection, wireless communication, making telephone calls, sending SMS, global positioning, etc.



                                                                                                                                                    The SIM7600G-H 4G HAT supports telephoto calls and sending SMS by AT Commands using an onboard audio jack.

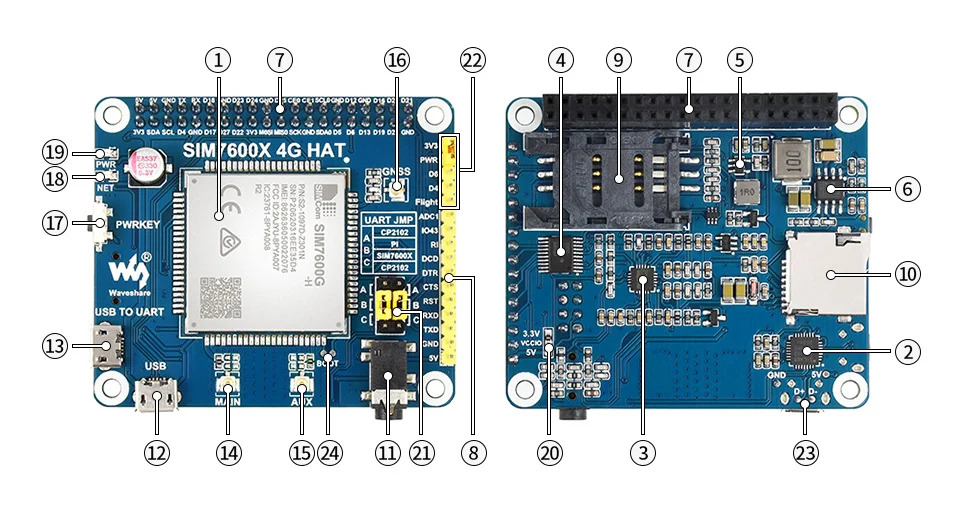

                                                                                                                                                    1. SIM7600G-H
                                                                                                                                                    2. CP2102 USB to UART converter
                                                                                                                                                    3. NAU8810 audio decoder
                                                                                                                                                    4. TXS0108EPWR voltage translator: translates 3.3V/5V into 1.8V
                                                                                                                                                    5. MP2128DT power chip
                                                                                                                                                    6. MP1482 power chip
                                                                                                                                                    7. Raspberry Pi GPIO header
                                                                                                                                                    8. SIM7600 control interface: for connecting with host boards like Arduino/STM32
                                                                                                                                                    9. SIM card slot : supports 1.8V/3V SIM card
                                                                                                                                                    10. TF card slot : allows data storage like files, messages, etc.
                                                                                                                                                    11. 3.5mm earphone/mic jack
                                                                                                                                                    12. USB interface  : for testing AT Commands, getting GPS positioning data, etc.
                                                                                                                                                    13. USB to UART interface : for serial debugging, or log in to Raspberry Pi
                                                                                                                                                    14. MAIN antenna connector
                                                                                                                                                    15. AUX antenna connector
                                                                                                                                                    16. GNSS antenna connector
                                                                                                                                                    17. Power switch
                                                                                                                                                    18. Network status indicator
                                                                                                                                                    19. Power indicator
                                                                                                                                                    20. Operating voltage selection jumper
                                                                                                                                                    21. UART selection jumper  A: access Raspberry Pi via USB to UART B: control the SIM7600 by Raspberry Pi  C: control the SIM7600 via USB to UART
                                                                                                                                                    22. PWR configuration jumper :PWR – 3V3: auto startup on power-up (default) PWR – D6: startup/shut down by the Raspberry Pi D6 pin,Flight mode configuration jumper,NC by default, no flight mode control pin,Flight – D4: flight mode is controlled by the Raspberry Pi D4 pin
                                                                                                                                                    23. USB connector solder pads
                                                                                                                                                    24. BOOT forced programming solder pads



                                                                                                                                                    Features:

                                                                                                                                                    • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
                                                                                                                                                    • Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
                                                                                                                                                    • Supports GPS, BeiDou, Glonass, LBS base station positioning
                                                                                                                                                    • Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
                                                                                                                                                    • Onboard CP2102 USB to UART converter, for serial debugging
                                                                                                                                                    • Breakout UART control pins, to connect with host boards like Arduino/STM32
                                                                                                                                                    • SIM card slot supports 1.8V/3V SIM card
                                                                                                                                                    • TF card slot for storing data like files, messages, etc.
                                                                                                                                                    • Onboard audio jack and audio decoder for making a telephone call
                                                                                                                                                    • 2x LED indicators, easy to monitor the operating status
                                                                                                                                                    • Onboard voltage translator, the operating voltage can be configured to 3.3V or 5V via jumper
                                                                                                                                                    • Baudrate: 300bps ~ 4Mbps (default: 115200bps)
                                                                                                                                                    • Autobauding baudrate: 9600bps ~ 115200bps
                                                                                                                                                    • Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
                                                                                                                                                    • Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT



                                                                                                                                                    Package Includes:

                                                                                                                                                    1 x SIM7600G-H 4G HAT Board

                                                                                                                                                    1 x 360° foldable LTE Antenna

                                                                                                                                                    1 x Magnetic base GPS External Antenna (B) with 2-meter cable

                                                                                                                                                    2 x USB type A plug to Micro plug Cable (Small + Lomg)

                                                                                                                                                    1 x RPi screws and Standoff pack (2pcs)

                                                                                                                                                    2 x Antenna connector

                                                                                                                                                    Additional information
                                                                                                                                                    HSN Code

                                                                                                                                                    8479
