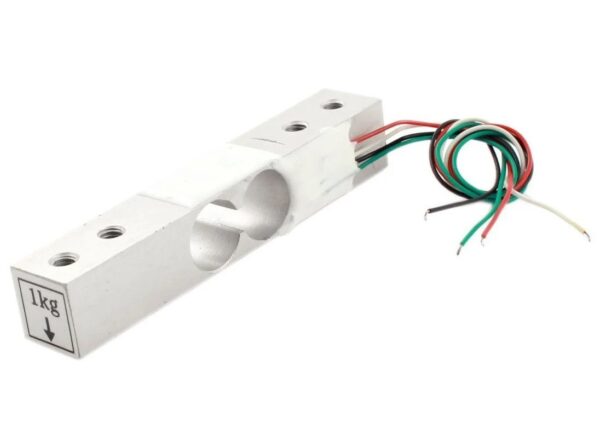

This weighing Load Cell Sensor (sometimes called a strain gauge) can translate up to 1 kg of pressure (force) into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response to, and proportional of, the strain (e.g. pressure or force) applied to the bar.
With this gauge, you will be able to tell just how heavy an object is, if an object’s weight changes over time, or if you simply need to sense the presence of an object by measuring strain or load applied to a surface. This straight bar load cell is made from an aluminum alloy and is capable of reading a capacity of 1KG of weight
Specifications
| Model | YZC-131 |
| Material | Aluminium |
| Dimensions in mm (LxWxH) | 75 x 12.6 x 12.6 |
| Weighing Range (Kg) | 0 ~ 1 |
| Rated Output | 1.0 ± 0.1mV / V |
| Non Linear Output | ± 0.03% F.S |
| Impedance (Ω) | 1066 ± 10% Ω |
| Output Impedance | 1000 ± 10% Ω |
| Insulation Resistance (MΩ) | 2000 |
| Hysteresis | 0.03% F.S |
| Repeatability | 0.03% F.S |
| Creep | (5 minutes) 0.05% F.S |
| Zero Balance | ± 0.1 mV / V |
| Cable Length (cm) | 18 |
| Operating Temperature Range (°C) | -20 to 65 |
| Weight (gm) | 26 |
| Shipment Weight | 0.08 kg |
Package Includes:
- 1 x Weighing Load Cell Sensor 1Kg for Electronic Scale
