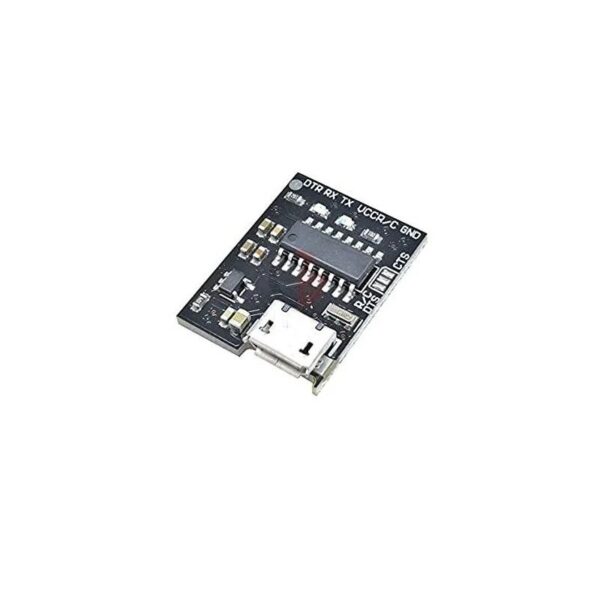

This is WEMOS CH340G Breakout 5V 3.3V USB to Serial Module. Fine workmanship, long life span.Mini size, easy to install.
Specification
| Driver IC | CH340G |
| Operating voltage | 5V (The max current depends on your USB port, usually 500mA) |
| 3.3V (Using LDO, 300mA MAX) | |
| Dimensions in mm (LxWxH) | 17 x 22 x 7 |
| Shipment Weight | 0.003 kg |
Features:
- Made of premium material, it is reliable and safe to use.
- Use CH340G with stable performance.
- Driver: 1. CH340G USB to UART driver
- RTS: 1. Connect R/C port to RTS, it can flash ESP8266 module(such as: ESP-01 02 … 12F)
- CTS: 1. Connect R/C port to CTS, it can flash for Arduino boards(such as: for Arduino pro mini)
Package Includes:
- 1 x WEMOS CH340G Breakout 5V 3.3V USB to Serial Module
