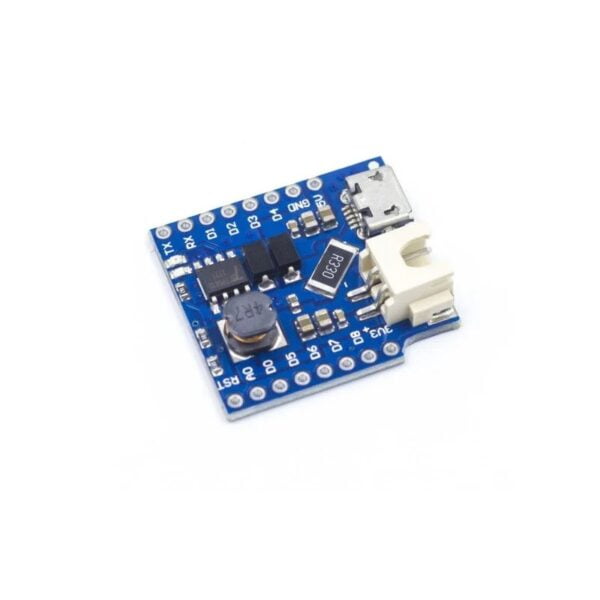

The WeMos lithium battery shield provides a means of powering your WeMos mini, or WeMos mini Pro (see item HCWEMO0002) from a single cell (3.7V) lithium battery. The shield contains a DC-DC converter to step-up the batteries 3.7V to 5V supplying your WeMos mini and shields with up to 1A of power. When the battery is depleted simply plug the shield into a USB power source using a mini USB cable and it will automatically recharge the battery. Two LEDs on the shield indicate when the battery is charging and when charging has completed.
Specifications
| Charging Voltage | 10V MAX 5V Recommended |
| Charging Current | 1A |
| Lithium Battery Voltage | 3.3-4.2V |
| Boost Power Supply | 5V (Max 1A) |
| Length (mm) | 30 |
| Width (mm) | 28 |
| Height (mm) | 6 |
| Weight (gm) | 5 |
| Shipment Weight | 0.01 kg |
Ports:
- XH2-2.54mm (Port 1): Connect to lithium battery (3.3-4.2V)
- Micro USB: Charging Port (5V)
- Green LED: Illuminates when charging is complete
- Red LED: Illuminates when charging is in progress
- J1: Sets the maximum charging current: 0.5A or 1A
Package Includes:
- 1 x WeMos D1 Lithium Battery Charger Board with Mini USB
