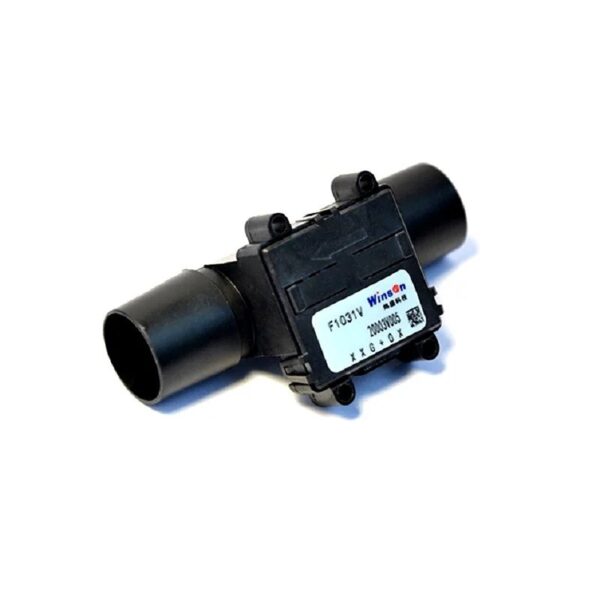

The Winsen F1031v Micro Flow Sensor uses the thermodynamic principle to detect the flow rate of the gas medium in the flow channel, with good precision and repeatability. Temperature sensors are built-in and every one product is calibrated for temperature compensation. At the same time, it has a linear analog voltage output, convenient to use.
Specifications
| Model No. | F1031V |
| Measuring Range | 150 SLM |
| Max. Full Scale Output | 4.66 V |
| Max. Zero Output | 0.55 V |
| Output Impedance | 1000 Ω |
| Max. Working Voltage | 14 V |
| Working Current | 25mA |
| Output Drift | 0.12 %/℃ |
| Signal Noise | 10 mV(Vrms) |
| Power Consumption | 125 mW/5V |
| Working Pressure | 100 kPa |
| Length (mm) | 83 |
| Width (mm) | 30 |
| Height (mm) | 30 |
| Weight (gm) | 80 |
| Shipment Weight | 0.02 kg |
Features:
- Latest MEMS Sensor chip technology
- High accuracy, quick response, good repeatability
- Detection microflow accurately
- It is calibrated completely and temperature compensated
Package Includes:
- 1 x Winsen F1031v Micro Flow Sensor
- 1 x Connecting Cable
