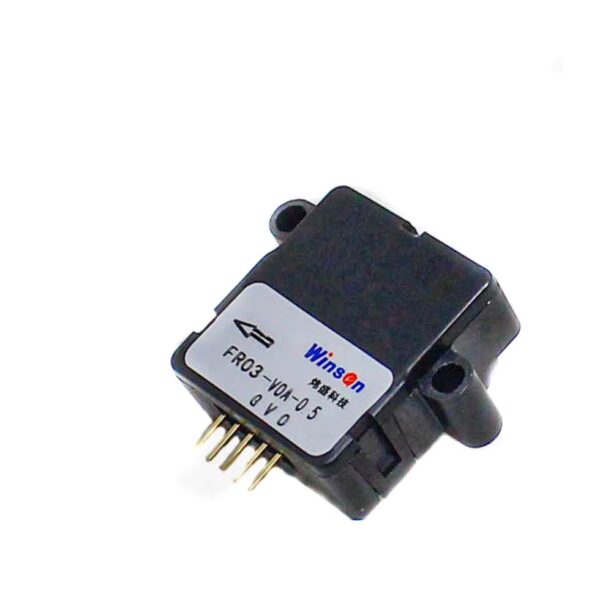

Winsen FR03 Micro Flow Sensor

FR03 flow sensor is an upgrading developed from F1013 . It adopts MEMS Thermal principle to monitor the flow of pipeline gas medium. This product adopts low pressure loss design and is widely used for all kinds of gas measurement.

Specifications:

• Model No: FR03
• Full Scale(SLM): 0.2/0.3/0.4/0.5
• Drift diameter: DN3
• Output Mode Linearity: 0.5V～4.5V(Customized)
• Output impedance: 200Ω
• Working Voltage: DC5V～14V
• Working Current: ≤10mA
• Accuracy: ±(2+0.5FS)%
• Repeatability: 0.50%
• Working Temperature: 0℃～50℃

Features:

• High sensitivity
• Very low pickup flow
• High Accuracy
• Low voltage loss
• Modular design
• High measurement repeatability
• Suitable for customization of various products

Packages Includes:

• 1 x Winsen FR03 Micro Flow Sensor
