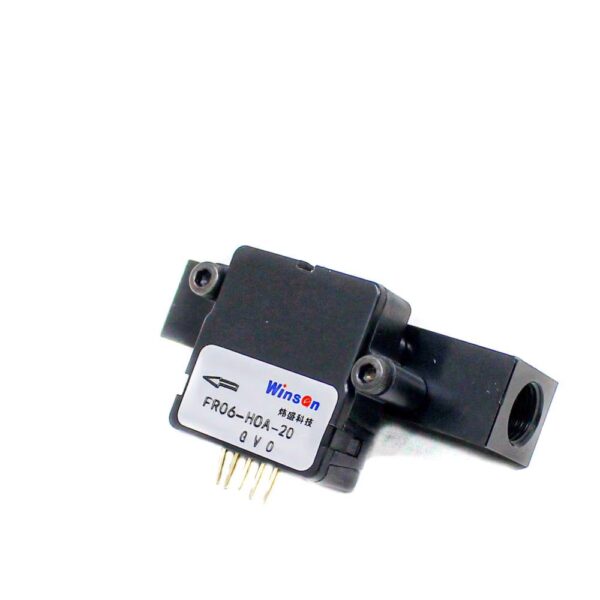

FR06 flow sensor is an upgrading developed from F1022 . It adopts MEMS Thermal principle to monitor the flow of pipeline gas medium. This product adopts low pressure loss design and is widely used for all kinds of gas measurement.
Specifications:
- Model No: FR06
- Full Scale(SLM): 10/20 SLM
- Drift diameter: DN6
- Output Mode Linearity: 0.5V～4.5V(Optional)
- Output impedance: 200Ω
- Working Voltage: DC5V～14V
- Working Current: ≤10mA
- Accuracy: ±(2+0.5FS)%
- Working Pressure: Customized
- Working Temperature: 0℃～50℃
Features:
- High sensitivitz
- Very low pickup flow
- High Accuracy
- Low voltage loss
- Modular design
- High measurement repeatability
- Suitable for customization of various products
Packages Includes:
- 1 x Winsen FR06 Micro Flow Sensor
