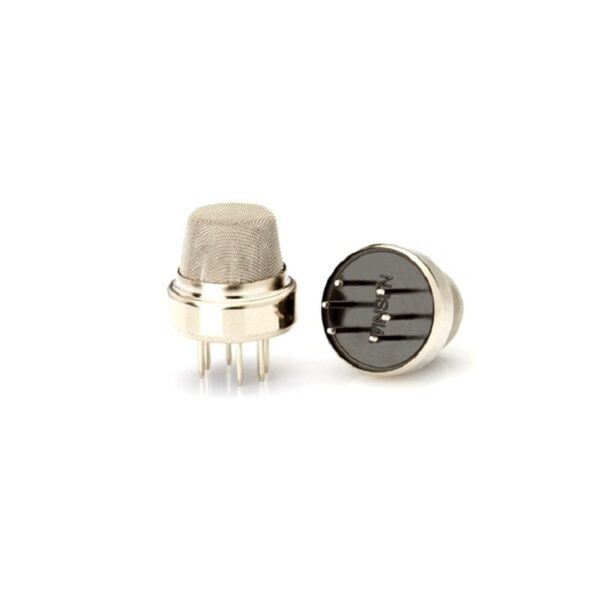

Winsen MQ-5 LPG Detection Sensor is an original and brand new LPG, CH4, C3H8 Detection Sensor. With a long lifespan and low price, for detecting Methane, Butane, and Propane gas leakage.
The sensitive material of the MQ-5 gas sensor is SnO2, which with lower conductivity in clean air. When the target flammable gas exists, the sensor’s conductivity gets higher along with the gas concentration rising. Users can convert the change of conductivity to correspond output signal of gas concentration through a simple circuit. MQ-5 gas sensor has a high sensitivity to butane, propane, methane and can detect methane and propane at the same time. It also can detect kinds of flammable gases, especially LPG(propane). It is a kind of low–cost sensor for many applications.
Specifications
| Model Type | MQ-5 |
| Sensor Type | Semiconductor |
| Standard Encapsulation | Bakelite, Metal Cap |
| Target Gas | LPG, CH4 |
| Detecting Range | 300～10000ppm(CH4,C3H8) |
| Output Voltage | 2.5V~4.0V (in 2000ppm C3H8) |
| Load Resistance | Adjustable |
| Heater Voltage | 5.0V AC or DC |
| Sensitivity | Rs(in air)/Rs( in 2000ppm C3H8)≥5 |
| Tem. Humidity: | 20℃±2℃；55%±5%RH |
| Length (mm) | 24 |
| Diameter (mm) | 19 |
| Weight (gm) | 8 |
| Shipment Weight | 0.02 kg |
Features:
- Responsive to Methane, Butane, and Propane gases
- Compatible with 5V
- Cost-efficient
Package Includes:
- 1 x Winsen MQ-5 LPG Detection Sensor
