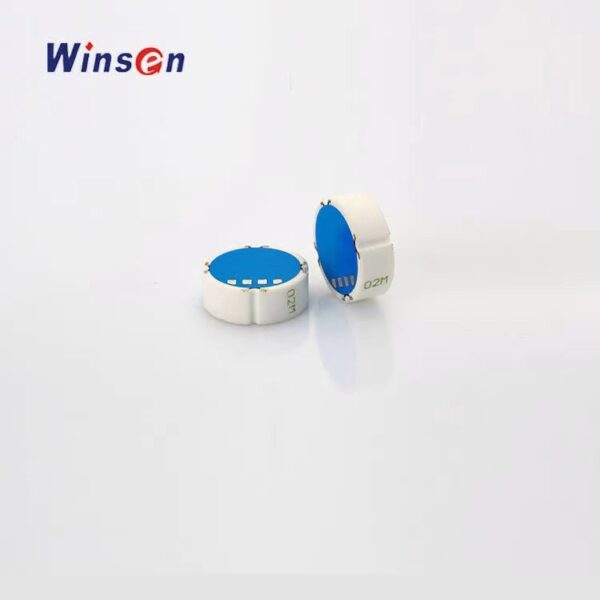

WPAH01 ceramic pressure sensor adopts ceramic base, made into ceramic piezo resistance pressure sensor with thick-film technology. It’s size Φ18mm x 6.35mm. Ceramic is a kind of material with high elasticity, corrosion resistance, wear resistance, resistance to impact and vibration. Ceramic’s good thermal stability and thick film high temperature sintering process make the ceramic pressure sensor’s operating temperature range up to -40 ~ 125 ℃. The ceramic’s high elasticity and creep resistance make the ceramic pressure sensor have good long-term stability. Besides, the corrosion resistance character makes the sensor have unique advantages in the application such as the refrigeration, chemical and environmental protection and other fields.
Specification:
| Size | Φ18mm*6.35mm |
| Detection Range | 2bar, 5bar, 10bar, 20bar, 50bar, 100bar |
| Working voltage | 2-20V |
| Sensitivity | 1.5—4mv/V， typical value 2.5±1.0mv/V |
| Input, output resistance | 10KΩ±30% |
| Temperature range | -40℃-125℃ |
| Zero output | 0—±0.4 mv/V，， typical value 0±0.25mv/V |
| Linearity, hysteresis, repeatability | typical value ±0.3 %FS |
| Temperature draft | Typical value ±0.05%FS/℃ |
| Safe overload | two times of rated detection range (when sensitivity is typical value) |
| Stability | Better than ±0.5%FS / year (if it is used properly） |
| Mounting Hole Diameter (mm) | 2.0mm |
| Shipment Weight | 0.001 kg |
Features:
- Ceramic sensitive film with high overload capacity
- Laser calibration for zero and full scale
- Excellent corrosion resistance, wear resistance
- Impact resistance, anti-vibration
- High precision, good stability
- Wide operating temperature range
- Small size, easy to package
- Environmental protection
