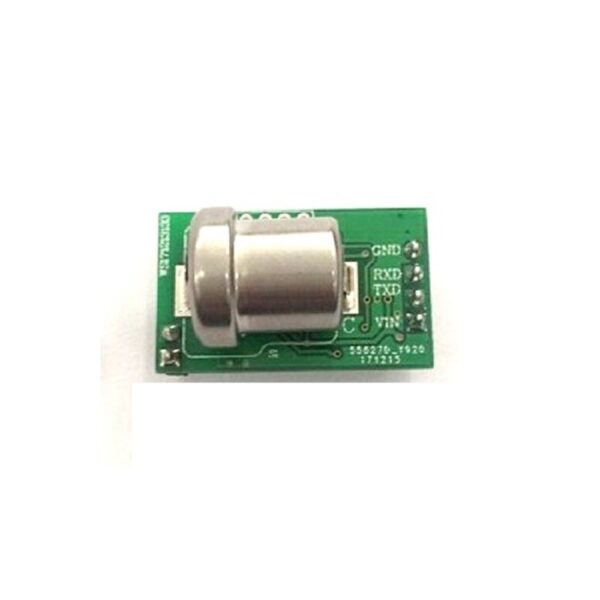

ZE16B-CO is a general-purpose and miniaturization electrochemical carbon monoxide detection module. It utilizes the electrochemical principle to detect CO in the air which makes the module with high selectivity and stability. It is a combination of mature electrochemical detection principles and sophisticated circuit design.
Specifications
| Model No. | ZE16B-CO |
| Working Voltage | 5V DC |
| Detection Gas | Carbon Monoxide (CO gas) |
| Output Data | UART Output |
| Output Way | PWM Output |
| Preheating Time | 30 Sec |
| Response Time | ≤30 Sec |
| Recovery Time | ≤30 Sec |
| Detection Range | 0～500ppm |
| Length (mm) | 28 |
| Width (mm) | 17 |
| Height (mm) | 17 |
| Weight (gm) | 25 |
| Shipment Weight | 0.02 kg |
Features:
- Serial port output.
- PMW output.
- Built-in temperature sensor.
- Making accuracy higher in the requested range.
Package Includes:
- 1 x ZE16B-CO Carbon Monoxide Module.
