If you want to make a device that can detect various types of gases for your project, you’ll need multiple sensors. So, here’s the answer for you: The Winsen ZPHS01B Air Quality Monitoring Sensor Module is an all-in-one solution for air quality monitoring. It contains everything you require.

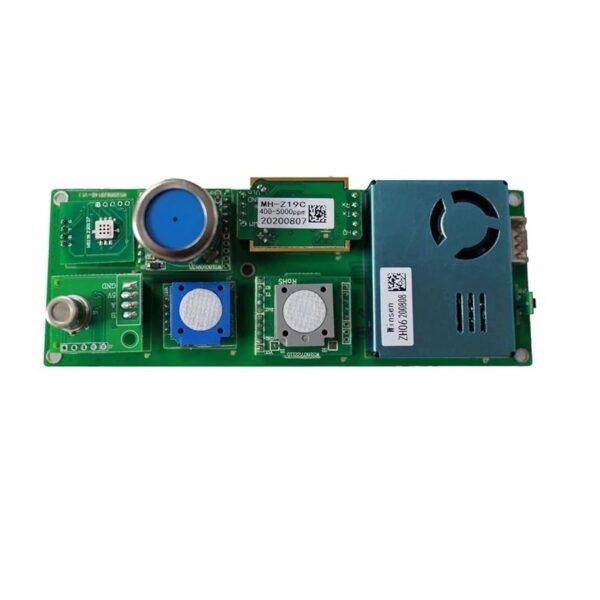

ZPHS01B is an All In One Air Quality Monitoring Sensor Module, integrating laser dust sensor, infrared carbon dioxide sensor, electrochemical formaldehyde sensor, electrochemical ozone sensor, electrochemical carbon monoxide sensor, VOC sensor, NO2 sensor, and temperature, and humidity sensor.
Specifications
| Model No. | ZPHS01B |
| Target Gas | CO2, PM2.5, CH2O, O3, CO, TVOC, NO2, Temperature, Humidity |
| Working Voltage | 5V (DC) |
| Average Current | ＜300 mA |
| Peak Current | ＜500 mA |
| Physical interface | XH2.54-4P |
| Interface level | 3V(compatible with 3.3V) |
| Output signal | UART (TTL) |
| Working Temperature | -10～50℃ |
| Working Humidity | 15~80% RH(no condensing) |
| Length (mm) | 135 |
| Width (mm) | 50 |
| Height (mm) | 26.2 |
| Weight (gm) | 25 |
| Shipment Weight | 0.04 kg |
Features:
- Multi-in-one air quality module
- Accurate measurement of the concentration of various gases
- UART (TTL level) communication interface
Package Includes:
- 1 x Winsen ZPHS01B All In One – Air Quality Monitoring Sensor Module
