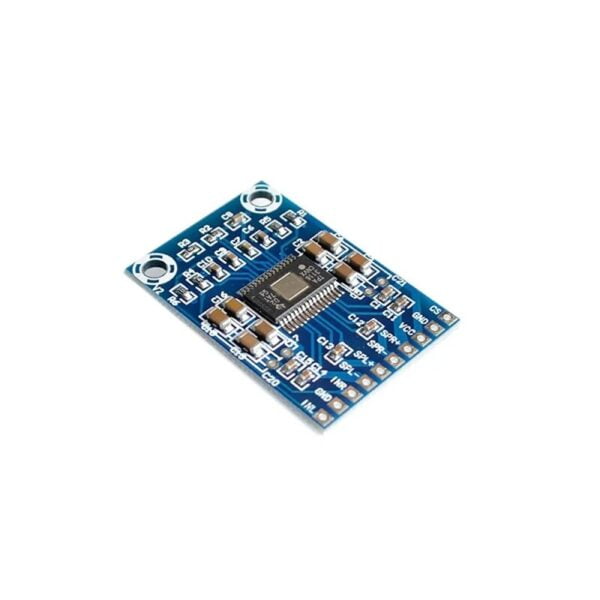

The XH-M562 TPA 3116D2 50W+50W Dual Channel Mini Digital Class D Amplifier. Allowing it to achieve high-quality sound reproduction. The new filterless architecture allows the device to drive the speaker directly, requiring no low-pass output filters, thus saving system cost and PCB area. With the same numbers of external components, the efficiency of the TPA 3116D2 is much better than that of Class-AB cousins. It can extend the battery life, which makes it well-suited for portable applications
Features :
- Dual-channel stereo, high output power (50w + 50w power @ 12V ).
- Good sound quality.
- Double panel wiring solves crosstalk.
- Supermini design allows it to be easily placed in a variety of digital products.
- Filterless, Low Quiescent Current and Low EMI.
- Superior Low Noise.
- Short Circuit Protection.
- Thermal Shutdown.
Specification:
| Operating Voltage (VDC) | 12 ~ 24 |
| Max Gain | 36 dB |
| Current Handling Capacity (A) | 3 |
| Efficiency | >90% |
| Amplifier IC | TPA3116D2 |
| Load | Can direct drive 4 or 8 ohm small speakers. |
| Length (mm) | 25.6 |
| Width (mm) | 37.2 |
| Height (mm) | 3 |
| Weight (gm) | 5 |
| Shipment Weight | 0.01 kg |
| Shipment Dimensions | 8 × 6 × 2 cm |
