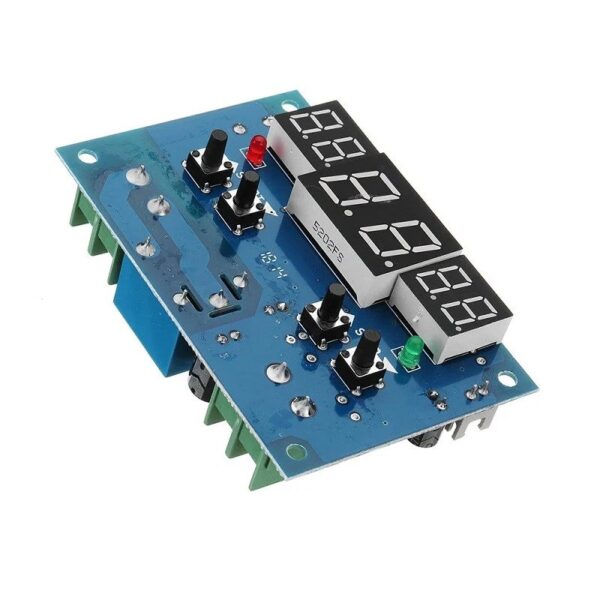

XH-W1401 DC12V Digital Thermostat Temperature Controller With NTC Sensor & LED Display is a dual temperature controlled thermostat. This module can control both heater and cooler and you can set it according to your application.
An NTC temperature sensor is provided for monitoring temperature from a range of -9℃ to 99℃. A relay is provided for AC or DC load control the relay can control up to 10 amperes. The module input voltage (supply voltage) is 12 volts DC.
Specifications
| Model | XH-W1401 |
| Thermostat Range | -9℃ to 99℃ |
| Input Supply Voltage (VDC) | 12 |
| Refresh Rate | 0.5 Sec |
| Length (mm) | 7800% |
| Width (mm) | 20-Feb |
| Weight (Kg) | 0.04 |
| Shipment Weight | 0.05 kg |
Features:
- Imported High-Speed single-chip microcomputer.
- Three Display output status indicator.
- Automatically judge heating and cooling according to set temperature.
- Setting range is wide -9°C~99°C
- Used in various temperature control, water temperature control, incubators, etc.
Package Includes:
- 1 x XH-W1401 DC12V Thermostat Intelligent Digital Thermostat Temperature Controller With Led Display
- 1 x NTC Temperature Sensor
