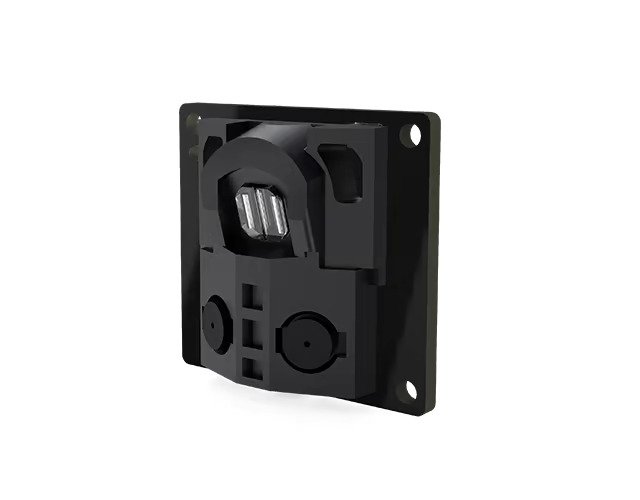

YDLIDAR GS2 is a Linear array of solid LiDAR (hereinafter referred to as GS2). Based on the principle of Triangulation, it is equipped with related optics, electricity, and algorithm design, to achieve 100 degrees high-precision laser distance measurement, and output point cloud data of the scanning environment. It can be used for robot obstacle avoidance, path planning, etc.
Specifications
Model | GS2 |
Product Type | Linear array solid LiDAR Sensor |
Operating Voltage(V) | 3.4 V |
Operating Current (A) | 95mA |
Scan Angle | 100° |
Range Frequency | 28Hz |
Range Distance | 25mm~300mm |
Angle Resolution | 0.6° |
Baud rate | 1500000bps |
Life-time | 10000h |
Operating Temperature | 40 ℃ |
Laser wavelength | 860 nm |
Laser power | 25mW |
Shipment Weight | 0.006 kg |
Features:
- High accuracy, stable performance
- High resolution of ranging angle, up to 0.6 degrees
- Good obstacle avoidance effect, the smallest object with a diameter of 3mm can be
- detected
- Wide detection range, no blind zone in combination, FOV up to 100 degrees
- Small detection range blind area, detectable distance is 25mm~300mm
- Class I eye safety
- 10000h Service life
Packages Includes:
- 1 x YDLIDAR GS2 Linear array solid LiDAR Sensor
