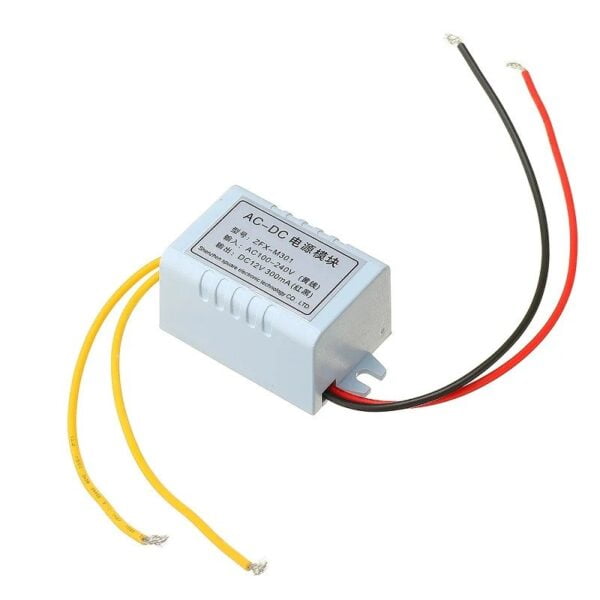

This high-Quality DC 12V 300mA Adapter with AC 100-240V Input range. It is widely used for LED Driver and as a Switched-mode power supply (SMPS) for various devices that required 12V with low current. This is an advanced power supply and better than conventional ones. If you want low losses and stable output also you don’t want to make a rectifier, so go for this switching power supply module.
Specifications
| Model | ZFX-M301 |
| Input Voltage (V AC) | 100 ~ 240 |
| Operating Voltage (VDC) | 12 |
| Max. Output Current (A) | 30% |
| Length (mm) | 40 |
| Width (mm) | 30 |
| Height (mm) | 25 |
| Weight (gm) | 30 |
| Shipment Weight | 0.033 kg |
Features :
- PWM design, make sure the stability and high efficiency of power supply.
- Anti-jamming, passed EMC test, wave less than 20MV.
- Efficiency above 80%, exotherm less than 25 degree
- Function: with overvoltage protection, short-circuit protection, overload protection
- Non-waterproof
- Constant voltage output assumes a stable power supply for LED lightings to reach a long lifetime and reduce led to light decay.
Package Includes :
1 x ZFX-M301 AC100-240VDC 12V 300MA Switching Power Module
