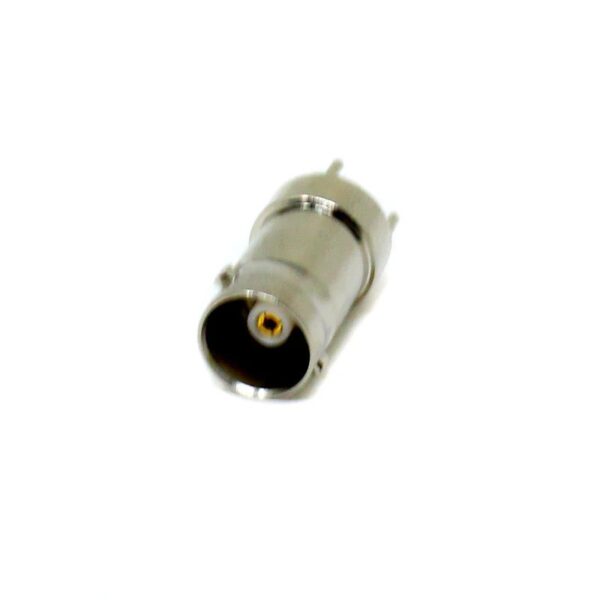

Zinc Alloy BNC Jack Receptacle PCB Mount

Zinc Alloy BNC Jack Receptacle PCB Mount

BNC/TNC and a diverse range of RF connectors plugs, jacks and bulkhead jacks. These connectors are designed to provide compatibility with industry-grade 50 ohm and 75-ohm cables for longer operational life with gold and nickel plating for environmental protections.

A range of standard items is listed in the category RF Connectors. Explore the Category for more cable mount as well as PCB/Panel Mount RF connectors that suits your needs. Contact us for any other specific requirements.

Main Application of BNC Connectors:

Antennas, Cable Assembly, Automotive, Radios, Video, Broadcast, Telecom, Satcom, Monitors, Recorders, Switchers, Base Stations, Medical Equipment, Instrumentation, CCTV, CATV, HDTV, etc.

Specification

Features and Specifications:

Features:

• Pcb Mount, Jack/female, Straight/180°, 50Ω;
• Compact Design for less installation space required;
• Easy quick connect and disconnect coupling;
• High-Quality product.

Technical Specifications:

• Electrical Characteristics
• Impedance：50 ohm
• Frequency Range: 0~4 GHz
• VSWR: Straight type ≦ 1.22/3GHz / R/A type ≦ 1.30/3GHz
• Dielectric Withstanding Voltage: 1500 V rms
• Working Voltage: 500 V rms
• Center Contact Resistance ≦ 1.5 mΩ (Milliohms max.)
• Outer Contact Resistance ≦ 2.0 mΩ (Milliohms max.)
• Insultation Resistance ≧5 × 10³ mΩ (Milliohms min.)

Mechanical Characteristics

• Coupling: bayonet
• Contact Retention: 6 lbs min.
• Mating Durability: ≧500 cycles

Environmental Characteristics

• Environmental Characteristics: Teflon -55oC~+155oC / POM -40oC~+60oC
• Coupling Nut Retention: 100 lbs. min.
• Vibration: MIL-STD-202 Meth. 204
• Corrosion Resistance: MIL-STD-202 Meth. 101

Note: Refer Schematic Image for Dimensional Details

Package Includes:

• 1 x Zinc Alloy BNC Jack Receptacle PCB Mount
