PB-03 can meet the power consumption requirements of most application scenarios, as the RF output power is adjustable, and other features can be fine-tuned. As such, the Bluetooth LE 5.2 module provides an optimal balance between the communication range, data rate, and power consumption

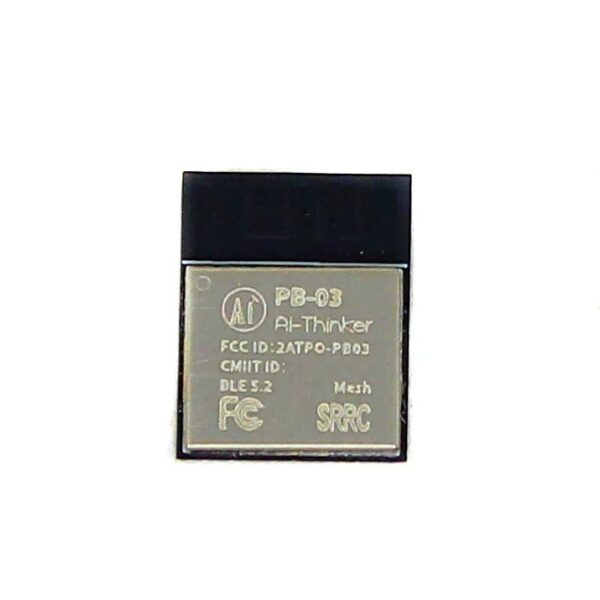

PB-03 is a BLE module developed by Shenzhen Ai-Thinker Technology Co, Ltd.
The core processor chip PHY6252(SSOP24)of this module is a BLE SoC with high integration and low power consumption, which is specially designed for various applications such as IoT, mobile devices wearable electronic devices and smart homes.
Specifications
| Brand | Ai-Thinker |
| Model Number | PB-03 |
| Product name | Bluetooth module |
| Type | BlE 5.2, BLE5.2 |
| Chipset | PHY6252 |
| SPI Flash | 256KB |
| Antenna | On-board antenna |
| Frequency range | 2400~2483.5MHz |
| Interface | UART/GPIO/ADC/PWM/I2C/I2S/SPI/PDM/DMA |
| BLE | BLE 5.2 |
| Security | AES-128 |
| Package | SMD-61 |
| Size | 16.6×13.2×2.8(±0.2)mm |
| Country of Origin | Guangdong China |
| Shipment Weight | 0.001 kg |
Features:
- PB-03 module provide rich peripheral interfaces including UART, PWM, ADC, I2C, SPI, PDM, DMA and up to 19 IOs.
- PB-03 module has many unique hardware security mechanisms Hardware encryption accelerator supports AES algorithm.
- PB-03 module supports BLE with low power consumption: BLE 5.2 and BLE mesh Bluetooth rate
- support: 125Kbps, 500Kbps, 1Mbps, 2Mbps. Support broadcast expansion multi-broadcast channel selection.
- Application: Smart light control, mesh networking
Packages includes:
- 1 x Ai-Thinker PB-03 BLE 5.2 Module
