LAMBDOID hardware technology company specializing in RF & Solar products. Our prime focus is the design and manufacture of standard and customized RF solutions for the Telecommunication industry which includes RF Antennas, RF Devices, RF Shields, RF Cables and Assemblies, RF Connectors, etc.
An antenna is a device to transmit and receive electromagnetic waves. Electromagnetic waves are often referred to as radio waves. Most antennas are resonant devices, which operate efficiently over a relatively narrow frequency band. Antennas can be designed to transmit and receive radio waves in all horizontal directions equally (omnidirectional antennas), or preferentially in a particular direction. Here you can get an antenna for UBlox NEO GPS model, Antenna Base Set and many more GPS modules.

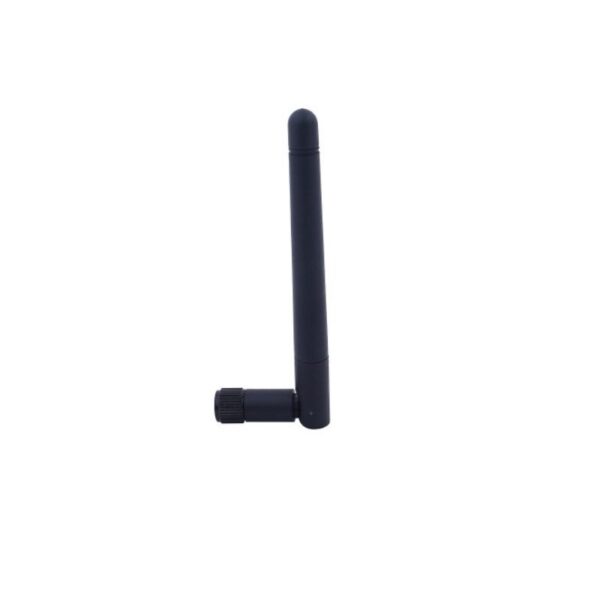

The rubber ducky antenna is an electrically short monopole antenna that functions somewhat like a base-loaded whip antenna. It consists of a springy wire in the shape of a narrow helix, sealed in a rubber or plastic jacket to protect the antenna. Rubber ducky antenna is a form of normal-mode helical antenna.
Specification
| Model No. | LWC-2400-5500-RD-RA-SMA-PLUG0305 (FLAT) |
| Antenna Gain | 3/ 5 dBi |
| Frequency (MHz) | 2400 MHz & 5500 MHz |
| Impedance (Ω) | 50 |
| VSWR | < 2.0 |
| Polarization | Vertical |
| Power Handling (W) | 10 |
| HPBW | H: 3600 ; V: 30 0 / 400 |
| Connector | SMA (Plug) |
| Housing Material | ABS / Polycarbonate |
| Operating humidity | 5 – 75% |
| Operating Temperature (°C) | -300 to 600 C |
| Weight (g) | < 40 g |
| Product Dimensions | 170 x 18 mm |
| Application | WiFi, Bluetooth/ Zigbee,5G , ISM |
| Shipment Weight | 019 kg |
Features:
- Compact Size
- Low Cost
- Easy to use
- Plug and play deceive
- Durable & hard body
Packages Includes:
- 1 x 2400 MHz & 5500 MHz 3/5 dBi Gain Rubber Duck Antenna
