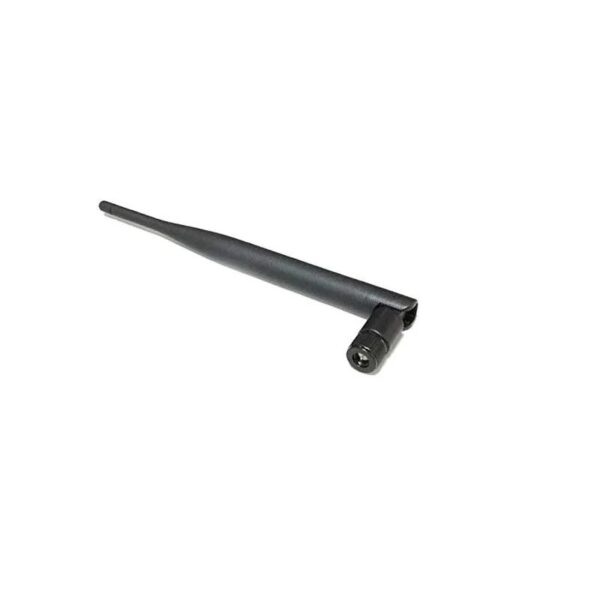

This is 5dBi Gain Dual Band 3G / 4G LTE Antenna with SMA-Male Right Angle foldable connector having a frequency of 824 – 960 MHz & 1710 – 2170 MHz.
Specifications
| Frequency (MHz) | 824 – 960 MHz & 1710 – 2170 MHz |
| Gain | 4 / 5 dBi |
| Impedance (Ω) | 50 |
| VSWR | < 2.5 |
| Polarization | Vertical |
| Power Handling (W) | 10 |
| HPBW | H: 3600 ; V: 350 / 250 |
| Connector | SMA Plug |
| Operational Temperature | -30° to 60° C |
| Humidity | 5 – 75% |
| Housing | Plastic / Black |
| Dimension (mm) | 210 x φ10 |
| Weight | 100g |
| Shipment Weight | 0.12 kg |
Features:
- Compact Size
- Low Cost
Package Includes:
- 1 x 824 – 960 MHz & 1710 – 2170 MHz 5dBi Gain Dual Band 3G / 4G LTE Antenna
