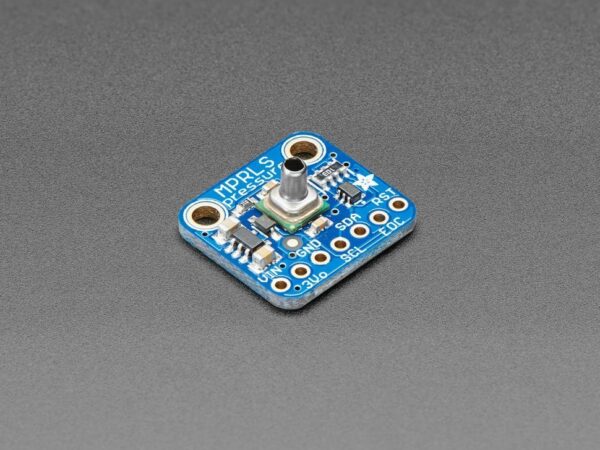

We stock a few barometric pressure sensors, great for altitude and weather measurements. This pressure sensor is special because it comes with a metal port! Unlike other pressure sensors, you can easily attach a tube to it, to measure air pressure inside a close space. In particular we think this would be a great sensor for use with making DIY assistive tech “Sip & Puff” interfaces, or measuring the pressure within a vacuum chamber or other pressurized container.
Unlike most ported pressure sensors, this one uses I2C, it’s really easy to use with any microcontroller. Inside is a silicone-gel covered pressure sensing gauge with a pre-calibrated and compensated 24 bit ADC. We have example code and libraries for Arduino or CircuitPython/Python. You can measure absolute pressure 0 to 25 PSI, which is a great range since ambient pressure here on Earth is about 14.5 PSI.
Specifications
Brand | Adafruit |
Pressure Range (MPa) | 0 to 25 PSI |
ADC | 24 bit |
sensing gauge | A silicone-gel covered pressure |
Port | The port is made of stainless steel and is 3.7mm long and 2.5mm diameter |
Voltage (V) | 3.3V power regulation and level shifting |
Address | Uses I2C address 0x18 |
Product Dimensions | 17.8mm x 16.7mm x 7.5mm / 0.7″ x 0.7″ x 0.3″ |
Product Weight | 1.1g / 0.0oz |
Shipment Weight | 0.003 kg |
Features:
- Very small size
- You can use with Arduino
- Power Pins: 3-5V
- I2C Logic pins:
- SCL – I2C clock pin, connect to your microcontrollers I2C clock line.
- SDA – I2C data pin, connect to your microcontrollers I2C data line.
- You can program with python
Packages Includes:
- 1 x Adafruit MPRLS Ported Pressure Sensor Breakout – 0 to 25 PSI RoHS Compliant
