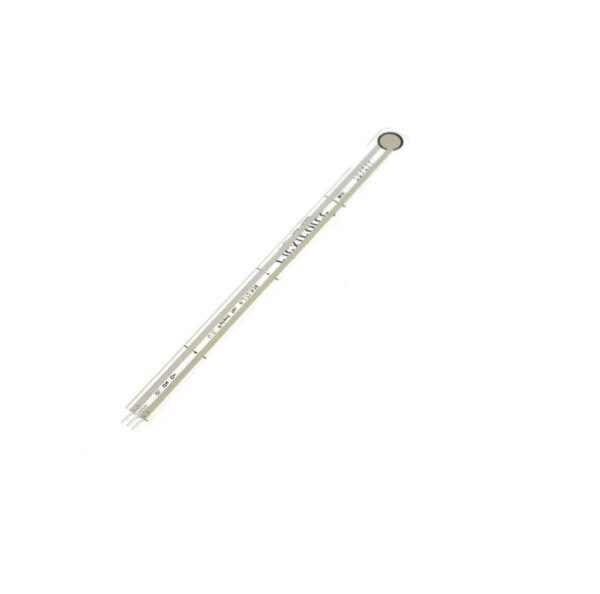

The A101 is our smallest sensor optimized for high volume manufacturing and ideal for embedding into products. The 2-pin sensors are currently our smallest standard sensor.
The sensors can measure up to 10 lbs. The dynamic range of this mini force sensor can be modified by changing the drive voltage and adjusting the resistance of the
Specifications
| Force Range | 0-44N(0 – 4.5 Kg) |
| Length ( cm ) | 15.6 mm |
| Width (mm) | 7.6 |
| Thickness (mm) | 0.203 |
| Connector | 2-pin Male Square Pin |
| Sensing Area (mm) | 3.8 |
| Pin Spacing (mm) | 2.54 |
| Surface Layer | Polyester |
| Operating Voltage (VDC) | 0.25 ~ 1.25 |
| Max Current (A) | 0.2 |
| Drift | < 5% per logarithmic time scale |
| Hysteresis | < 4.5 % of full scale |
| Linearity (Error) | < ±3% of full scale |
| Operating Temperature Range (°C) | -40 to 60 |
| Repeatability | < ±2.5% |
| Response Time ( μS) | 5 |
| RoHS Compliant | Yes |
| Shipment Weight | 0.004 kg |
Package Includes:
- 1 x FlexiForce A101 Force Sensor
