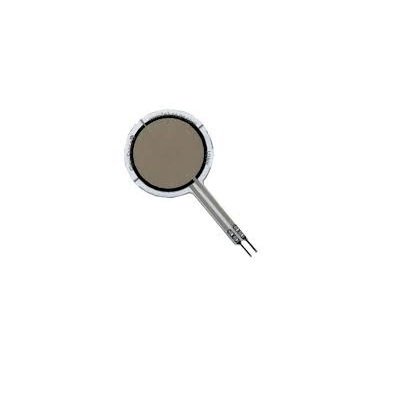

The A401 has a 2-pin connector. This is our standard sensor with the largest sensing area: 25.4 mm (1 in.). A401 sensors are available in one force range: 111 N (0 – 25 lb).* The force ranges stated are approximations. The dynamic range of this large force sensor can be modified by changing the drive voltage and adjusting the resistance of the feedback resistor.
Specifications
| Force Range | 0-111N (0 – 11 Kg) |
| Connector | 2-pin Male Square Pin |
| Length ( cm ) | 56.9 mm |
| Width (mm) | 31.8 |
| Thickness (mm) | 0.203 |
| Operating Voltage (VDC) | 0.25 ~ 1.25 |
| Max Current (A) | 0.2 |
| Drift | < 5% per logarithmic time scale |
| Hysteresis | < 4.5 % of full scale |
| Linearity (Error) | < ±3% of full scale |
| Pin Spacing (mm) | 2.54 |
| Repeatability | < ±2.5% |
| Response Time ( μS) | 5 |
| Sensing Area (mm) | 25.4 |
| Surface Layer | Polyester |
| Operating Temperature Range (°C) | -40 to 60 |
| RoHS Compliant | Yes |
| Shipment Weight | 0.005 kg |
Package Includes:
- 1 x FlexiForce A401 Force Sensor
