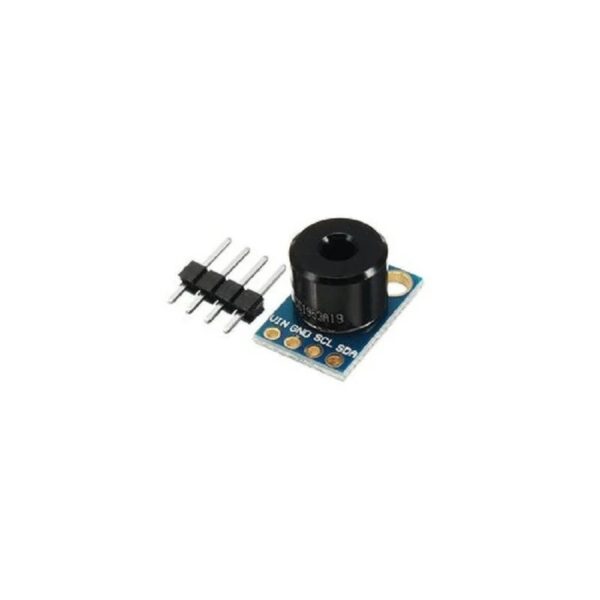

GY-906 MLX90614ESF -BCC Contactless Temperature Sensor Module is an infrared thermometer for use with Arduino or any microcontroller that can communicate with it through its I2C interface.
This is an infrared thermometer designed for non-contact temperature sensing. An internal 17-bit ADC and a powerful DSP contribute to the MLX90614’s high accuracy and resolution. It has a huge number of applications including body temperature measurement and movement detection. The sensor has a field of view of 35 degrees and returns the average temperature value of all objects within this field of view.
Specifications
| Input Voltage (V) | 3.3 |
| Sensing Range | 4 CM -10 cm |
| Field of View | 35° |
| Sensor Temperature | -40 to +85°C |
| Length (mm) | 2000% |
| Width (mm) | 20-Jan |
| Height (mm) | 20 |
| Weight (gm) | 5 |
| Shipment Weight | 0.02 kg |
Features:
- Small size, low cost.
- Mounted on a breakout board with two types of pins.
- 10k Pull-up resistors for the I2C interface with optional solder jumpers.
- Easy to integrate
- Factory calibrated in a wide temperature range
- Single and dual-zone versions
- SMBus compatible digital interface
- Customizable PWM output for continuous reading
- High accuracy of +/- 0.2°C over the wide temperature range
- Sleep mode for reduced power consumption
Package Includes:
- 1 x GY-906 MLX90614ESF -BCC Sensor Module
