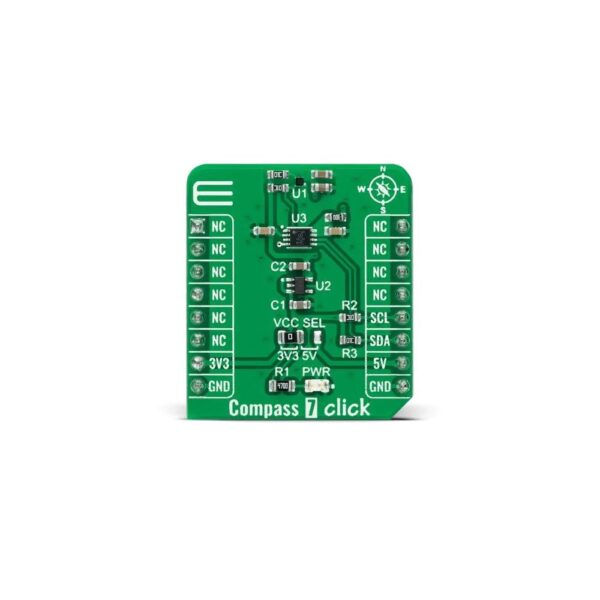

Compass 7 Click as its foundation uses the MMC5633NJL, a monolithic high-performance 3-axis AMR magnetic sensor from MEMSIC. It comes with an integrated drive circuit, signal processing circuit, and serial interface block, allowing low noise and high resolution. It can measure magnetic fields within the full-scale range of ±30 Gauss (G) with up to 0.0625mG per LSB resolution at 20bits operation mode and 2mG total RMS noise level, enabling heading accuracy of ±1º in electronic compass applications.
Specifications and Features:
- Type Compass, Magnetic
- Interface: I2C
- Compatibility: mikroBUS
- Click board size: 28.6 x 25.4 mm
- Input Voltage 3.3V or 5V
- On-board modules: MMC5633NJL – monolithic high-performance 3-axis AMR magnetic sensor from MEMSIC
- Low power consumption,
- Superior dynamic range and accuracy,
- On-chip automatic degaussing with built-in SET/RESET function,
- Sensitivity compensation and on-chip temperature sensor
Package Includes:
- 1 x Mikroe COMPASS 7 CLICK
