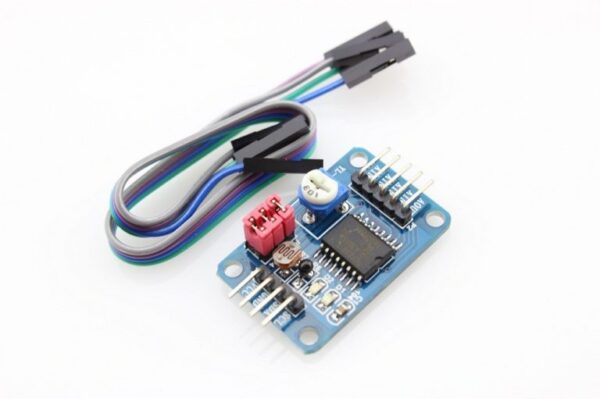

Specifications:
- The module supports external voltage input of the 4-way acquisition (voltage input range of 0-5v)
- The module integrated photoresistor by AD collection precise value of the ambient light intensity
- Module integrated thermistor by the precise value of the ambient temperature of the AD acquisition
- Module integrated 1 channel 0-5V voltage input acquisition (the blue potentiometer to adjust the input voltage)
- Modules with power indicator (for the module power supply indicator lights)
- Modules with DA output indicator, when the module DA output interface voltage reaches a certain value, will be lit panel the DA output indicator, the higher the voltage, the more obvious indicator brightness
- Module PCB size: 3.6cm x 2.3cm
- A standard double panel, thickness 1.6mm, nice layout, surrounded by a through-hole, aperture: 3mm, convenient fixed.
Module interfacing
- AOUT chip DA output interface
- AINO chip analog input interface 0
- AIN1 chip analog input interface 1
- AIN2 chip analog input interface 2
- AIN3 chip analog input interface 3
- SCL – IIC clock interface connected to microcontroller IO port
- SDA – IIC digital interface connected to microcontroller IO port
- GND – connected to ground
- VCC – connected to 3.3v-5v
- Four red jumper-cap instruction
- P4 – connected to P4 shorting cap, select thermistor access circuit
- P5 – connect P5 shorting cap, select photoresistor access circuit
- P6 – connected to P6 shorting cap, select 0-5V adjustable voltage access circuit
