Seeed Studio XIAO Series are diminutive development boards, sharing a similar hardware structure, where the size is literally thumb-sized. The code name “XIAO” here represents its half feature “Tiny”, and the other half will be “Puissant”.

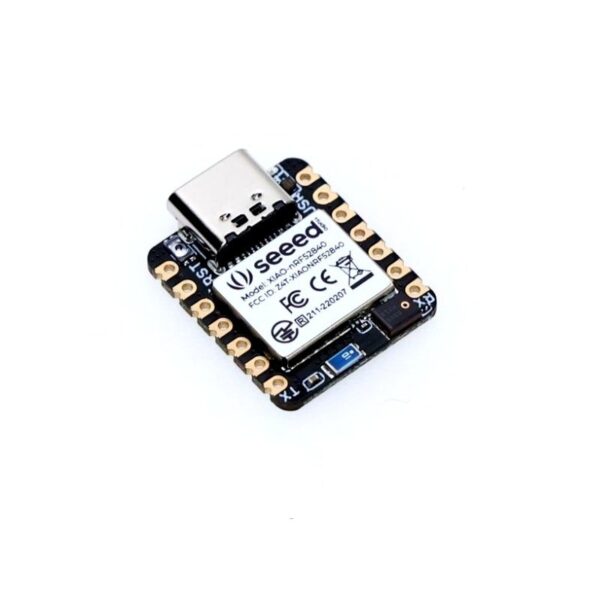

Seeed Studio XIAO nRF52840 Sense is carryingBluetooth 5.0 wireless capability and is able to operate with low power consumption. Featuring onboard IMU and PDM, it can be your best tool for embedded Machine Learning projects.
Application
- Small and flexible wearable device
- Wifi/Bluetooth-controlled wireless connection project
- Embedded Machine Learning Project
- IoT and TinyML AI applications
- Great for mini Arduino projects
Specification
| Input Voltage (V) | 5 |
| Processor | ARM庐 Cortex庐-M4 with FPU runs up to 64 MHz |
| Bluetooth Version | Bluetooth 5.0/NFC |
| Sensors | Onboard 6-axis IMU |
| Onboard PDM digital microphone | |
| Flash Memory | 1 MB flash and 256 kB RAM |
| Program Memory Size (kB) | 2048 Kb qspi flash |
| Interface | 11xGPIO(PWM), 6xADC |
| 1xUART, 1xIIC, 1xSPI, 1xNFC, 1xSWD, | |
| Shipment Weight | 0.003 kg |
Features:
- Versatile Microcontroller: Incorporate the Nordic nRF52840 chip with FPU, operating up to 64 MHz, mounted multiple development ports, supported by Arduino / CircuitPython
- Wireless Capabilities: Implement Bluetooth 5.0, BLE functions with onboard antenna, also provide NFC connectivity
- Elaborate Power Design: Provide ultra-low power consumption as 5 μA in deep sleep mode while supporting lithium battery charge management
- Advanced onboard Functionality: Assemble additional digital microphone and 6-axis IMU in the tiny board for embedded Machine Learning applications
- Thumb-sized Design: 21 x 17.5mm, Seeed Studio XIAO series classic form factor, suitable for wearable devices
Package Includes:
- 1 x Seeed Studio XIAO nRF52840 Sense TinyML/TensorFlow Lite IMU / Microphone – Bluetooth5.0
