SIM7600EI is a complete multi-band LTE-FDD/LTE-TDD/HSPA+/UMTS/EDGE/GPRS/GSM module solution in LCC type which supports LTE CAT1 up to 10Mbps for downlink and 5Mbps for uplink data transfer. Designed in the compact and unified form factor, SIM7600EI is compatible with SIMCom HSPA+ SIM5360 module/LTE CAT3 SIM7100 and LTE CAT4 SIM7600E-H module, which allows the customer to design their application once for different technology and benefit from great development time-saving
Specifications
| Main Chip | SIM7600EI |
| Supply voltage range | 3.4V~ 4.2V, 3.8V Typical |
| Operation Temperature | -40ºC to +85ºC |
| Bandwidth | 1.4/3/5/10/15/20MHz |
| LTE CAT1 | -Uplink up to 5Mbps |
| -Downlink up to 10Mbps | |
| HSPA+ | -Uplink up to 5.76Mbps |
| -Downlink up to 42 Mbps | |
| UMTS | Uplink/Downlink up to 384Kbps |
| EDGE | Uplink/Downlink up to 236.8Kbps |
| GPRS | Uplink/Downlink up to 85.6Kbps |
| Length (mm) | 66 |
| Width (mm) | 40 |
| Height (mm) | 10 |
| Weight (gm) | 18 |
| Shipment Weight | 0.02 kg |
Features:
- LTE-TDD B40/B41
- LTE-FDDB1/B3/B5/B8
- UMTS/HSPA+ B1/B8
- GSM/GPRS/EDGEB3/B8
- LCC Package
- Control Via AT Commands
- 3GPP E-UTRA Release 11
- USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win/Win10
- USB Driver for Linux /Android
- RIL supporting for Android 2.4/4.0/5.0/6.0/7.0
- MBIM to Win8
- Firmware update via USB
- TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS /HTTP/HTTPS/DNS
- SSL3.0/TLS1.0/TLS1.2
- DTMF (Sending and Receiving)
- Audio Playing
- USB Audio and VoLTE
- FOTA
Package Includes:

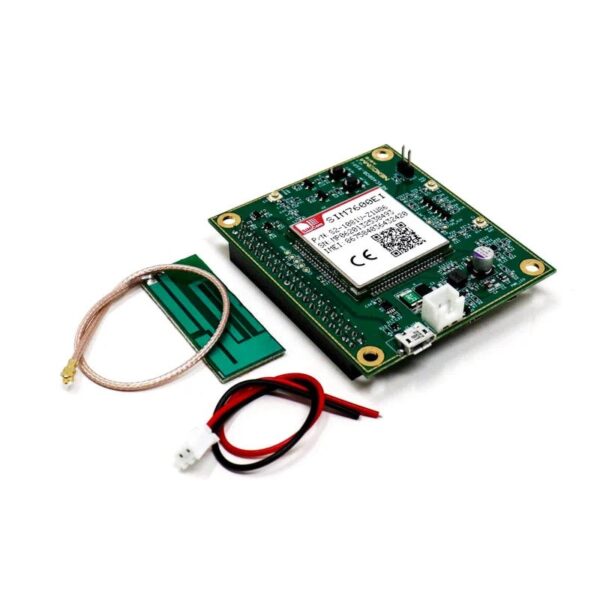

- 1 x SIM7600EI 4G LTE High-Speed Modem GPS/GNSS IoT board Raspberry Pi Compatible
