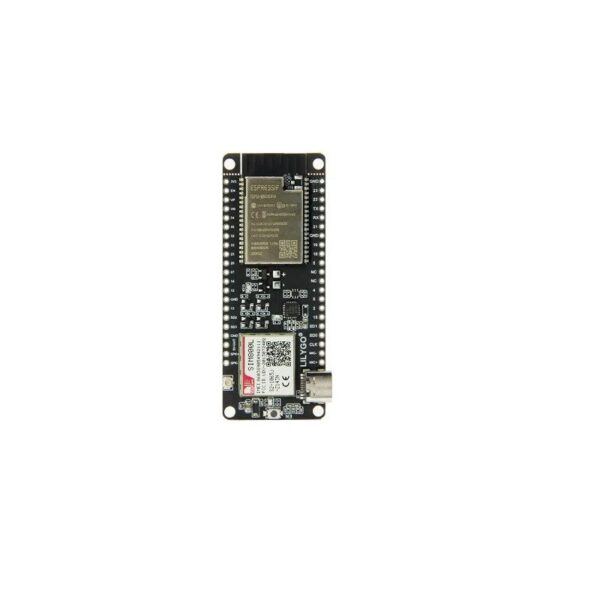

This is a TTGO T-Call V1.4 ESP32 Wireless Module SIM Antenna SIM Card SIM800L Module Unsoldered. The module is used for wireless communication. The ESP V1.4 ESP32 Serial WIFI Wireless Transceiver Module is a self-contained SOC with an integrated TCP/IP protocol stack that can give any microcontroller access to your WiFi network.
Specifications
| Chipset | ESPRESSIF-ESP32 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor |
| FLASH | QSPI flash 4MB / PSRAM 8MB |
| SRAM | 520 kB |
| USB to TTL | CP2104 |
| On-board clock | 40MHz crystal oscillator |
| Working voltage | 2.7V-3.6V |
| Working current | 70mA |
| SIM card | Only supports Nano SIM card |
| Power Supply | USB 5V/1A |
| USB | Type-C |
| Working Temperature Range (°C) | -40 to 85 |
| Length (mm) | 77 |
| Width (mm) | 29 |
| Height (mm) | 12 |
| Weight (gm) | 17 |
| Shipment Weight | 0.02 kg |
Features:
- The SIM800L wireless communication module is integrated with an ESP32 chip with a dual-core 32-bit LX6 microprocessor.
- The SIM800L ESP32 wireless module needs a power supply of 5V/1A and has a Type C port.
- The ESP32 SIM800L wireless communication module features 802.11 b/g/n wifi protocol and Bluetooth v4.2BR/EDR and BLE standard protocol.
- This wireless communication module supports cloud server development and SDK for user firmware development.
Package Includes:
- 1 x TTGO T-Call V1.4 ESP32 Wireless Module SIM Antenna SIM Card SIM800L Module Unsoldered
