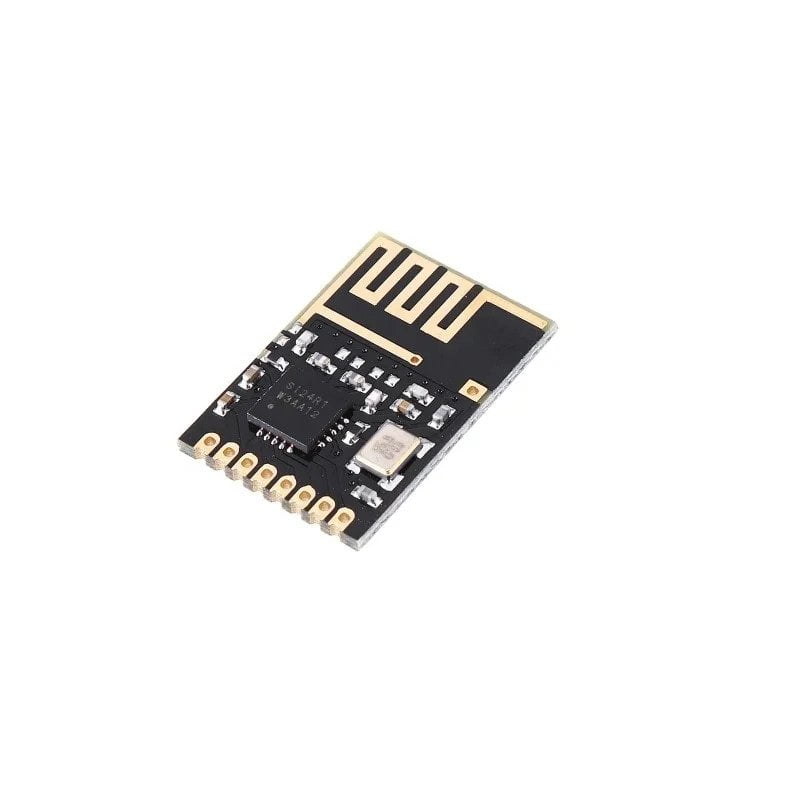

Ai Thinker NF-03 Wireless Transceiver is a 2.4G wireless module with a small size and on-board antenna. It has a high airspeed (up to 2Mbps), an SPI interface, and a pure hardware module. It has high stability, high-cost performance, and good spectrum test characteristics. , small size, using all industrial-grade components.
NF-03 can be widely used in various Internet of Things applications and is suitable for wireless mouse and keyboard, wireless remote control, somatosensory equipment, active RFID, NFC, low-power self-organizing network wireless sensor network nodes. The ideal solution for IoT applications
Specifications
Module model | NF-03 |
Modulation method | GFSK / FSK |
voltage range | 1.9-3.6V |
Antenna | Onboard PCB antenna, gain 2dBi |
Data rate | 2Mbps / 1Mbps / 250Kbps |
Package | SMD-8 |
Frequency Range | 2400MHz~2525MHz |
Max Transmit Power | 7±1 dBm |
Power Supply | 1.9~3.6V, Typical 3.3V |
emission curernt | 25mA(7dBm) |
receiving current | 15mA (2Mbps) |
Communication Interface | SPI (up to 10Mbps) |
Operating temperature | -20 °C ~ 85 °C |
Length(mm) | 18 |
Width(mm) | 12 |
Height(mm) | 2 |
Weight (gm) | 3 |
Shipment Weight | 0.03 kg |
Features:
- Built-in 2.4G antenna, compact size, easy to use
- Support data reception of six channels
- Modulation method: GFSK / FSK
- Support 2Mbps/1Mbps/250Kbps data rate
- Internally integrated high PSRR LDO
- Wide power supply voltage range: 1.9~3.6V
- Average emission current as low as 110mA
- Receiving sensitivity: <-83dBm @ 2MHz
- Maximum transmit power: +7dBm
- With four-wire SPI interface, the speed can up to 10MHz
- Internal integrated intelligent ARQ baseband protocol engine
- Transceiver data hardware interrupt output
- Support 1bit RSSI output
- 14.Receiving sensitivity: <-83dBm @ 2MHz
Package includes:
- 1 x Ai Thinker NF-03 Wireless Transceiver Module
