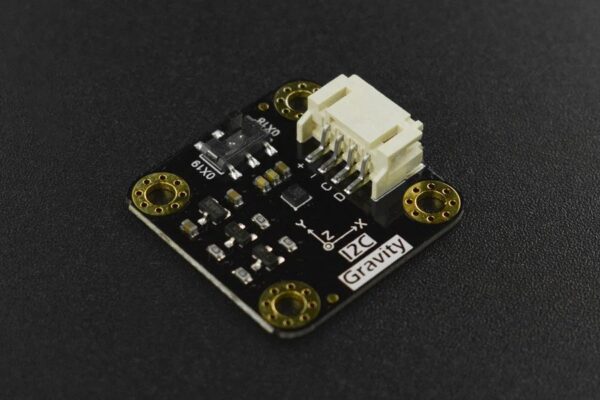

The DFRobot Gravity I2C LIS2DW12 Triple Axis Accelerometer Sensor is an ultra-low-power high-performance three-axis linear accelerometer. It has user-selectable full scales of ±2g/±4g/±8g/±16g and is capable of measuring accelerations with output data rates from 1.6 Hz to 1600 Hz.
The sensor comes with two independent programmable interrupts and a dedicated internal engine that can achieve various motion and acceleration detection including free-fall, portrait/landscape detection, 6D/4D orientation detection, configurable single/double-tap recognition, stationary/motion detection, wake-up for smart power saving, etc. And for your convenience, we provide you with sample programs for the above functions.
Specifications
| Operating Voltage(V) | 3.3 to 5 |
| Working Current(uA) | 8~10 |
| Interface Type | I2C |
| Frequency Range | 1.6Hz~1600Hz |
| Operating Temperature Range (°C) | -40 to 85 |
| Length (mm) | 27 |
| Width (mm) | 27 |
| Shipment Weight | 0.02 kg |
Specifications:
- Operating Voltage: 3.3V~5V
Operating Current: 8~10uA(low-power & low-noise mode)/0.12mA(high performance mode)
Interface: Gravity-I2C
I2C Address: 0x19 (default) / 0x18 (optional)
User-selectable Scale: ±2g/±4g/±8g/±16g
Operating Temperature: -40℃~+85℃
Frequency: 1.6Hz~1600Hz
Ultra-low Noise: 1.3mgRMS(low power mode)
16-bit Data Output
32-Level FIFO(First-in first-out buffer zone)
Sleep to Wake-up Function
10000g High Shock Survivability
ECOPACK, RoHS and “Green” Compliant
Module Size: 27*27mm/1.06*1.06
Mounting Hole Size: inner 3.1mm/outer 6mm
Features:
- User-selectable scale: ±2g/±4g/±8g/±16g
- 16-bit data output
- Easy-to-use Gravity interface, no need to solder
- Change I2C address by the toggle switch
Package Includes:
- 1 x Gravity: I2C LIS2DW12 Triple Axis Accelerometer Sensor
- 1 x Gravity-4P I2C/UART Sensor Connector
